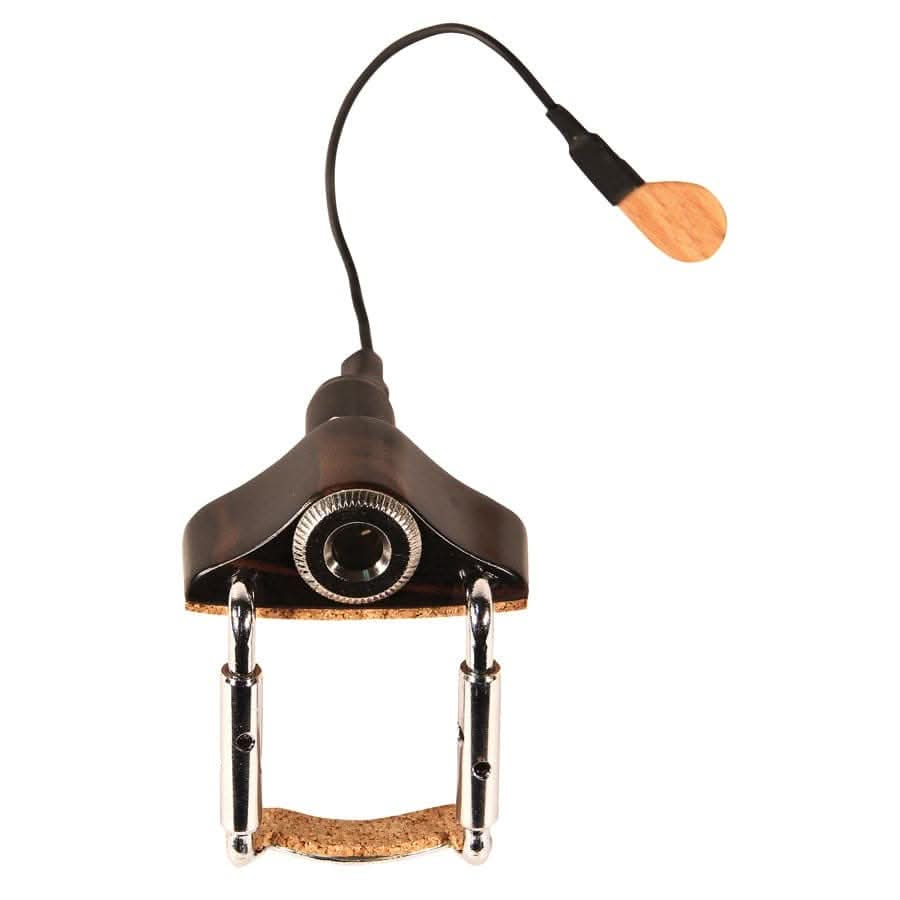

KNA VV-3 Violin Pickup
KNAVV3
Couldn't load pickup availability
Low-profile portable bridge-mounted piezo for violin or viola
VV-3 violin pickup offers clean and clear acoustic sound with easy installation without modification to the instrument.
The lightweight low-profile ebony jack housing makes the unit ideal for a performing musician.
Features:
Safe install
Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument and adjust the height of the barrel clamps to tighten the pickup to the instrument.
Wooden housing and sensor
The jack housing is encased in elegant and stylish ebony and the piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.
Natural sound
VV-3 has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Great compatibility with many sizes of violin and viola
The pickup comes with additional barrels for attaching the jack housing to larger violin and viola bodies.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| specifications | |
| Jack housing material | Solid Ebony |
| Overall weight | 36gr / 1.27 |
| Lead cable from jack housing to element | 15cm / 5.9" |
| Diameter of piezo element | 11.8mm / 0.46" |
| Thickness of the piezo element | 1.8mm +/- 0.10mm |
| Maximum Impedance | 1500 ã_ |
| Clamps adjustability (min & max) | 33mm to 43mm 1.16" to 1.51" |
| Clamps adjustability (min & max) | 40mm to 49mm 1.41" to 1.73" |
