KNA VV-3V Ebony Violin Pickup with Volume Control
KNAVV3V
Couldn't load pickup availability
Low-profile portable bridge-mounted piezo with volume control for violin or viola
VV-3V is the perfect solution for violin and viola players who seek to capture the natural tone of their instrument.
An onboard volume control makes it easy for performers to control the pickup output while onstage.
Cork-lined, fully adjustable barrel clamps keep the unit safe and stable while attached to the instrument.
Features:
Safe install

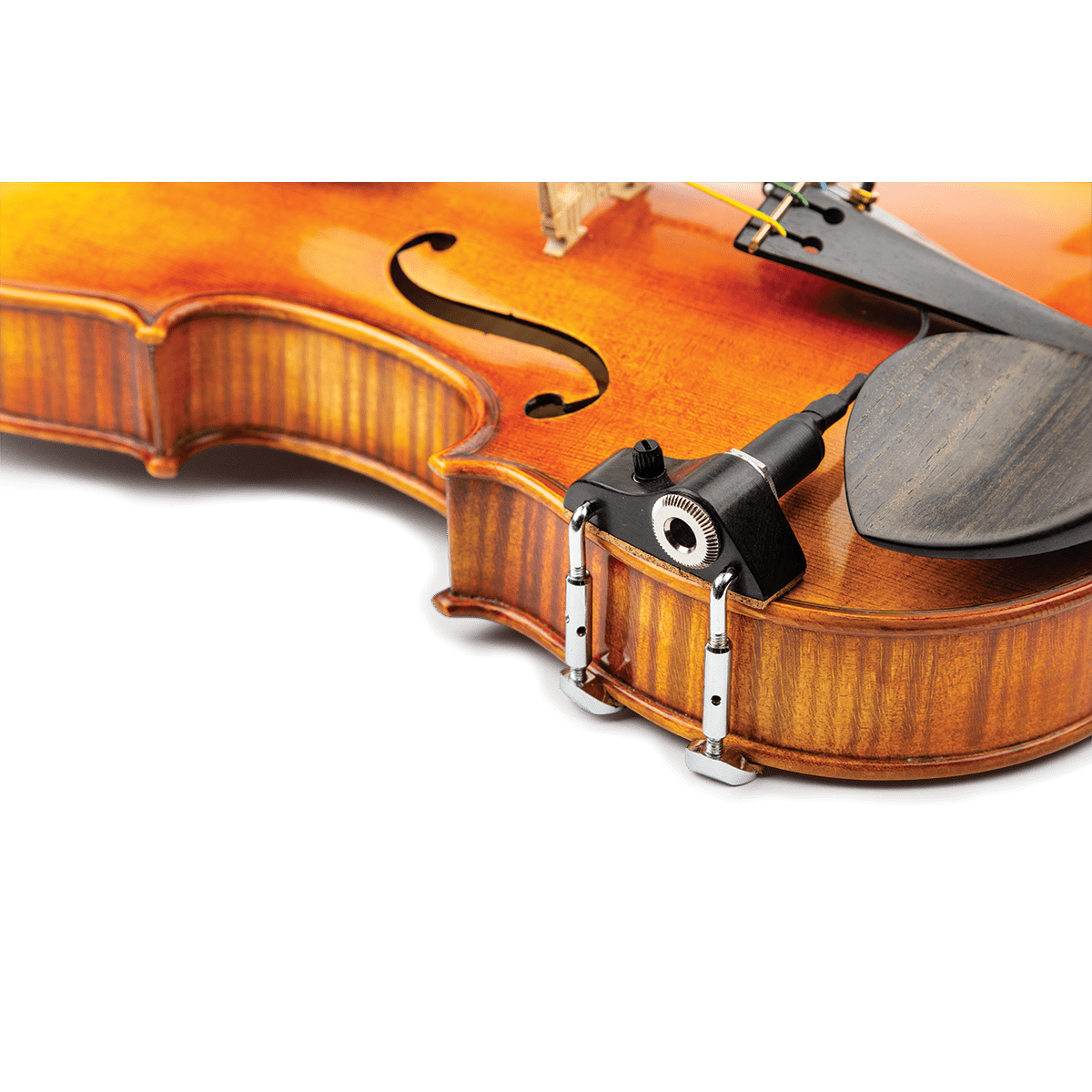

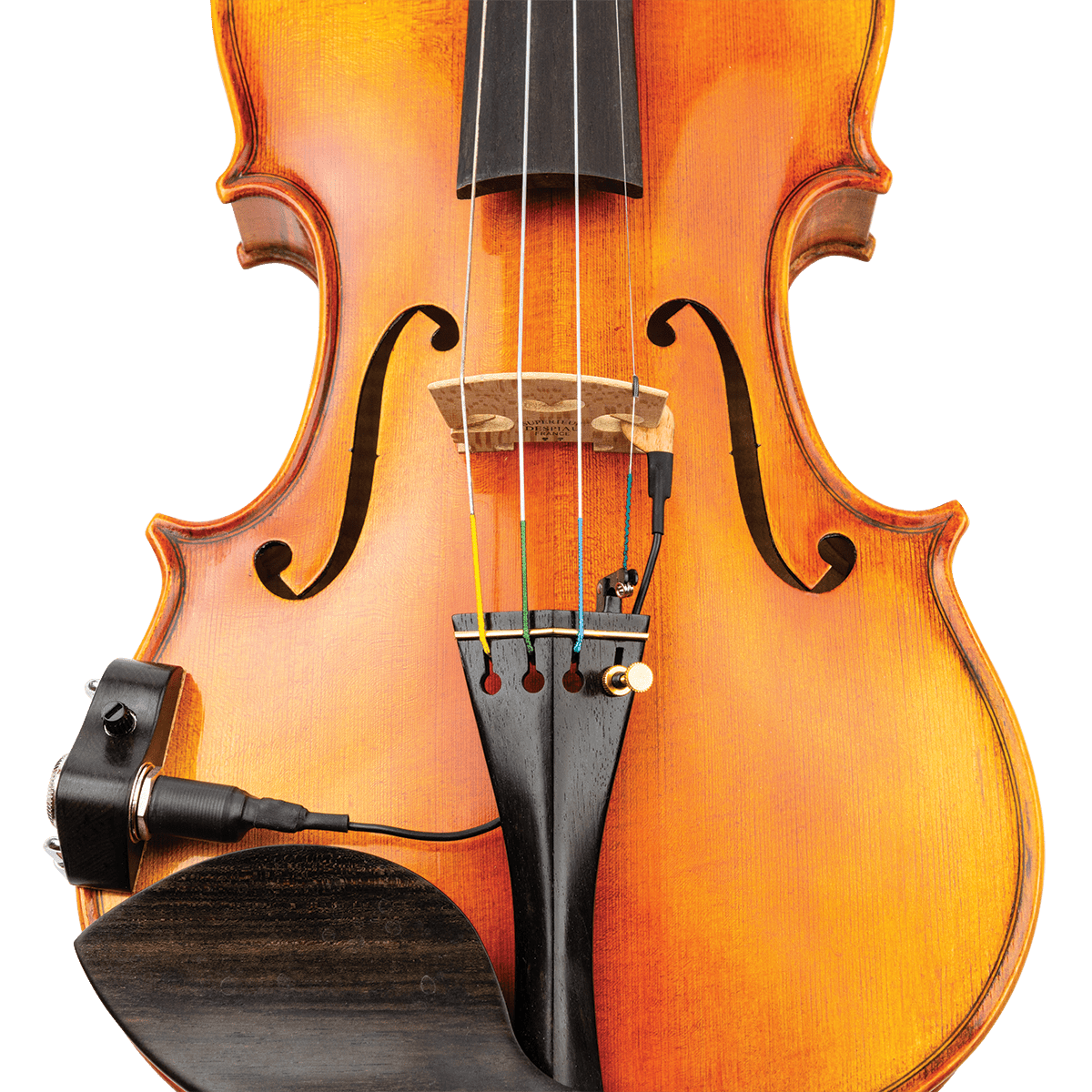

Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument. Adjust the height of the barrel clamps to tighten the pickup to the instrument.
Onboard volume control
Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.
Wood housing and sensor
The jack housing is encased in elegant and stylish ebony. The piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.
Natural sound
VV-3V has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Great compatibility with many sizes of violin and viola
The pickup comes with additional barrels for attaching the jack housing to larger violin and viola bodies.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| specifications | |
| Jack housing material | Solid Ebony |
| Overall weight | 45gr / 1.6oz |
| Lead cable from jack housing to element | 15cm / 5.9" |
| Diameter of piezo element | 11.8mm / 0.46" |
| Thickness of the piezo element | 1.8mm +/- 0.10mm |
| Maximum Impedance | 1500 ã_ |
| Clamps adjustability (min & max) | 33mm to 43mm 1.16" to 1.51" |
| Clamps adjustability (min & max) | 40mm to 49mm 1.41" to 1.73" |
