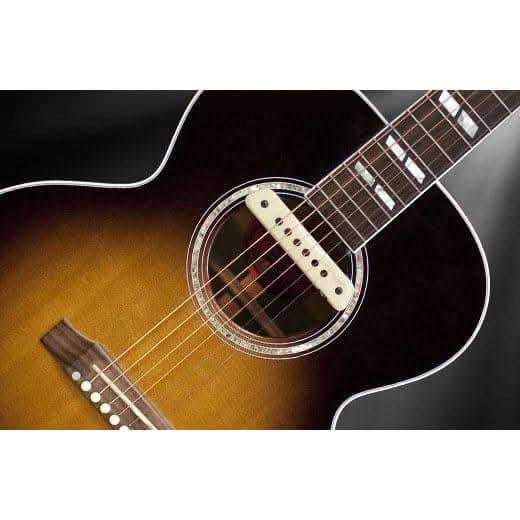

LR Baggs M1 Soundhole Body-Sensitive Magnetic Pickup

M1™ Series - Passive

Body-Sensitive Magnetic Pickup

The M1 is for players who love big acoustic tone With high feedback resistance on any stage. Combining the natural characteristics of your guitar’s soundboard With a punchy string attack, the M1’s body-sensitive design provides enhanced realism while cutting through a loud mix.

Body-Sensitive Design

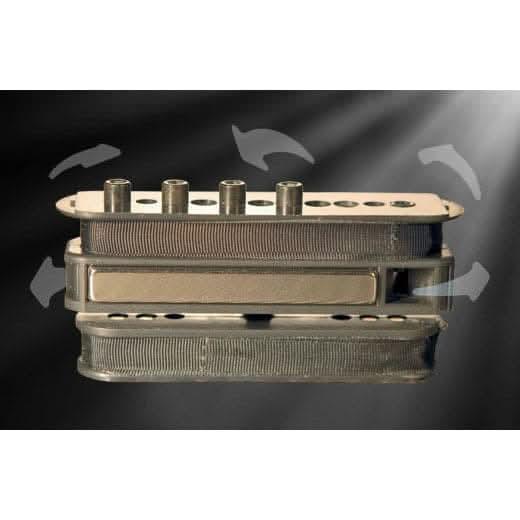

The M1 is a patented humbucking pickup With a twist. In a common stacked humbucker, the lower coil cancels hum, but doesn’t contribute anything positive to the sound. We unlock the lower coil With a carefully tuned support that allows it to capture higher frequency resonances. As the pickup moves With the guitar’s soundboard, a body signal is created in the suspended coil that adds presence and realism to your amplified sound.

M1™
Available in completely passive design, the M1 delivers professional amplification in minutes. Adjustable pole pieces provide balance from string to string and the 1/8” jack makes removing the pickup a snap for when you are in the studio. Install the pickup With the strapjack or use the 10’ external soundhole cable for absolutely no modifications to your prized instrument.

FEATURES:

• Highly Feedback-resistant
• Adjustable pole pieces
• A perfect blend of string and body signal
• Quiet hum-free operation
• Built-in gold plated 1/8" jack
• Includes a pre-wired strapjack harness and 10' cable for no modifications

Download M1™ Series Guides

M1 Installation Manual & User Guide
PLEASE NOTE: LR Baggs products must be installed by an authorized LR Baggs dealer to qualify for warranty coverage. Warranty support will not be provided for home or hobbyist installations.
