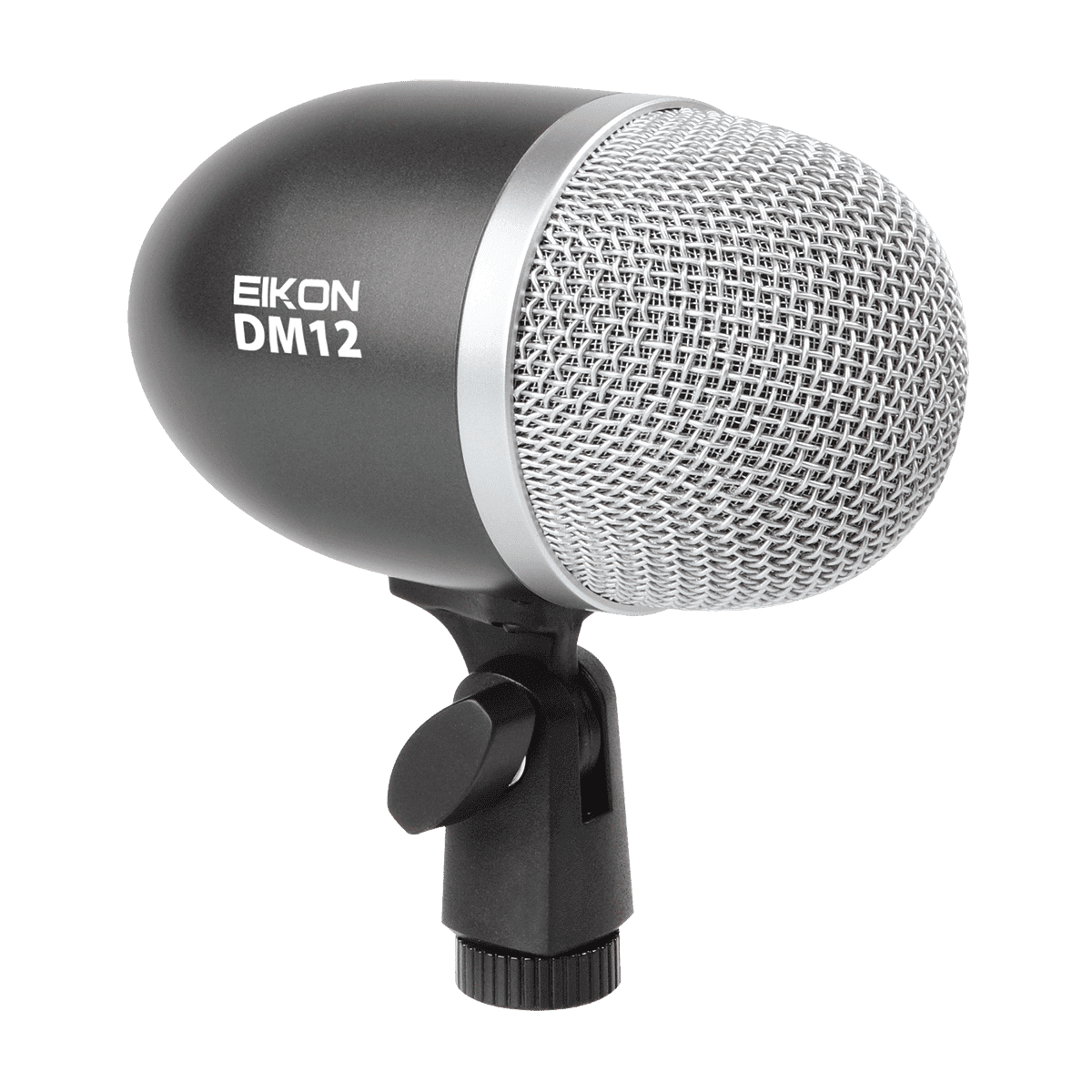

Eikon DM12 Bass Drum Microphone

Eikon DM12 Bass Drum Mic

The DM12 is an high output dynamic microphone with a frequency response specifically tailored for kick drum and other bass instruments.

It provides superb studio quality punch even in high sound pressure level applications.

The DM12 features a cardioid polar pattern to ensure high gain before feedback and excellent off-axis rejection.

An integrated locking stand adapter with XLR connector makes set-up operations very easy, expecially if the microphone needs to be placed inside a bass drum. The adapter absorbs vibrations.

A hardened steel mesh grille protects the DM12 from external impact.

• Professional dynamic instrument microphone
• Super-cardioid Polar Pattern
• Fast transient response
• Low frequency extension Designed to be used with bass drums, bass guitar cabs, tubas and other low frequency instruments
• Internal shock mount for reduced noise
• Durable metal construction with hardened steel mesh grille

Type	Dynamic
Polar Pattern	Super-Cardioid
Frequency Response	50 - 16000 Hz
Sensitivity	-58 dBv
Max SPL for 1% THD	152 dB (calculated)
Impedance	400 Ω
Connector	3 Pin XLR Male
Suitable for	Bass drum, bass guitar cabs, tuba, other low frequency instruments
