Ashdown Woodsman Series Acoustic Guitar Preamp Reverb Pedal

Ashdown Woodsman Pre-Amp Reverb Pedal for Acoustic Guitar

The Ashdown Woodsman Pre-Amp Reverb Pedal is designed to help acoustic players achieve the clarity and warmth of a studio mix in any live setting. Mediating the signal between instrument and PA, it brings out the natural tone of your acoustic guitar while adding studio-grade control and ambience.

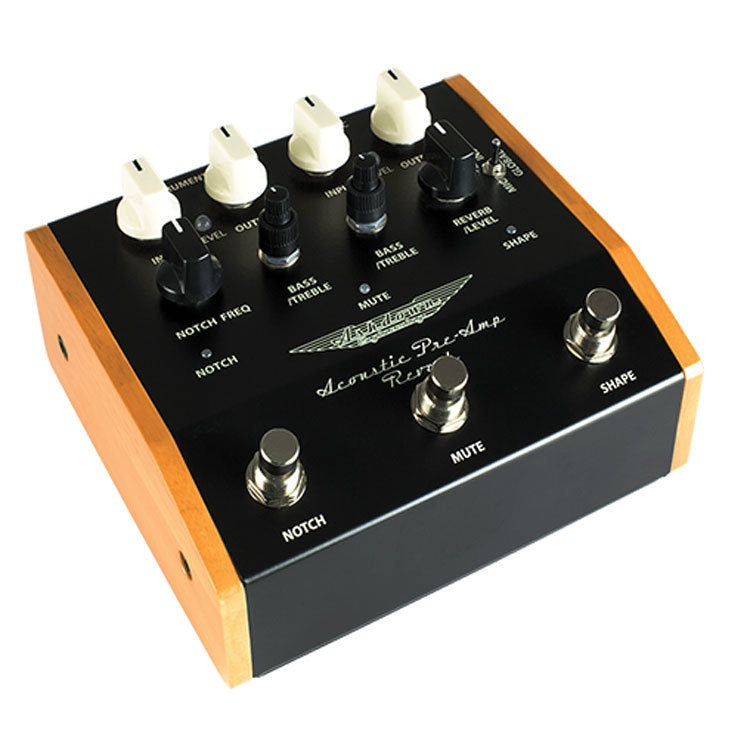

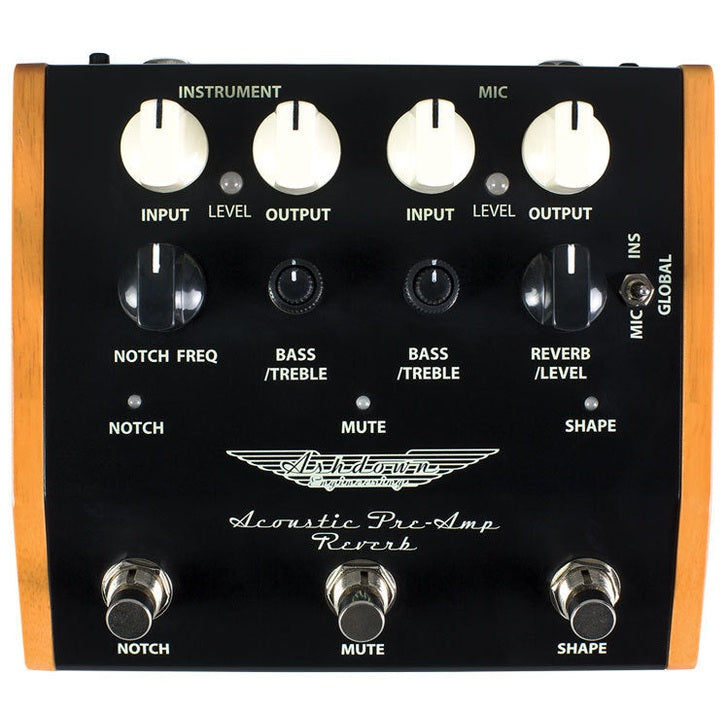

Based on the renowned Ashdown Woodsman Acoustic Amp circuitry, this pedal features an intuitive layout with high and low EQ, notch filter, and a Notch Frequency control for precision feedback reduction. The footswitchable Shape button instantly lifts your signal in the mix, while the assignable reverb lets you apply lush reverb to your guitar, vocals, or both through its dual instrument and microphone inputs.

A balanced DI output with Pre/Post switch ensures effortless connection to a PA system or recording interface, eliminating the need for an external DI box. Built with rugged metal construction and true-bypass switching, it delivers reliable, transparent tone night after night.

Specifications

• SKU: ASHWOODSMANREV

• Brand: Ashdown

• Series: Woodsman Series

• Type: Acoustic Preamp / Reverb Pedal

• High Instrument Input: 4 M Ohms – 100 mV

• DI Output: 600 Ohm balanced / 200 mV nominal

• EQ: Bass ±15 dB @ 150 Hz, High ±15 dB @ 5 kHz, acoustically tailored shape

• Notch Filter: Range 60 – 300 Hz, Attenuation –18 dB

• Inputs: ¼″ Instrument Jack & XLR Mic

• Outputs: Balanced DI (XLR), ¼″ Line Out

• Construction: Rugged steel housing, true bypass switching

Delivering pristine tone shaping, rich reverb, and professional connectivity, the Ashdown Woodsman Pre-Amp Reverb Pedal is an essential tool for performing acoustic guitarists.
