H-Expander

All Hagstrom electric guitars and basses include our patented H-Expander™ truss rod. Providing tension at both ends and running the entire length of the neck, the rigid yet light-weight alloy truss rod allows for a very low action and thin neck, two factors that were instrumental in earning Hagstrom its reputation as the world’s fastest playing guitar. The H-Expander™ truss rod not only provides ultimate neck stability, but it also contributes to Hagstrom’s unique tone. Longer sustain and a round attack are some of the sonic characteristics the H-Expander™ adds to the tonal essence of Hagstrom.

Machine Heads

Hagstrom models use 18:1 or 15:1 gear ratio machine heads based on our own designs to insure accurate tuning. Viking® and HB series basses feature machine heads with a 17:1 gear ratio.

Resinator Wood

Resinator™ wood is a wood composite material that is both more uniform in density and more stable than any standard wood product. These characteristics eliminate dead spots or “wolf tones” sometimes associated with conventional wood fingerboards. Resinator™ wood has an articulate sound similar to high quality ebony, but without any of the problems associated with ebony. It provides a stable and clear tone, and also adds higher overtones and harmonics which uniquely detail each note. Like our H-Expander™ truss rod, Resinator™ wood is a major contributor to the distinctive “Hagstrom tone”.

Set Neck

Hagstrom uses a variety of different neck joints throughout our range. Our set-neck recipe is the classic and time-tested Mortise and Tenon joint, a design that most efficiently transfers string energy from neck to body, and can often only be found on more expensive custom-built guitars. A team of experienced and dedicated craftsmen hand carves every neck joint, insuring perfect execution of this traditional technique preferred by luthiers for generations.

Wrap Around Bridge

The innovative wraparound bridge goes beyond mere aesthetic and mechanical features, channeling string energy through countered bridge anchors into the body for extended sustain, quick response, and resonant tones. Enhanced playing comfort meets sonic depth, shining with improved adjustability for perfect intonation.

Specifications

• Body: Mahogany
• Binding: 3-Ply
• Body Style: Double Cutaway
• Neck: Mahogany, Set Neck, Mortise Tenon Joint
• Neck Thickness: 19mm at 1st fret (excluding fingerboard, paint, and clear coat), 20.5mm at 12th fret (excluding fingerboard, paint, and clear coat)
• Truss Rod: H-Expander™
• Fingerboard: Resinator™
• Scale Length: 25.5" (648mm)
• Radius: 15"
• Inlays: Pearloid
• Position Marks: Pearloid Hagstrom Block Inlays
• Frets: 22 Medium Jumbo
• Nut: Custom String Spaced, GraphTech™ Black Tusq XL
• Nut Width: 43mm
• Neck Pickup: Hagstrom Custom 62 Humbucker (Medium Output – Calibrated – 8.2K)
• Bridge Pickup: Hagstrom Custom 62 Humbucker (High Output – Calibrated – 13.8K)
• Pickup Switch: 3-Way Toggle Switch with Hagstrom Brass Plated Cap (Chrome Plated)
• Controls: 1 x Volume Control with R/C Circuit, 1 x Tone Control
• Tuning Keys: Hagstrom 15:1 Ratio Chrome Tuners with Hagstrom Tuning Buttons
• Bridge: Hagstrom Wrap Around Bridge with Wide Reach Intonation Saddles
• Knobs: 2 x Hagstrom “H” Barrel Knurled Brass Knobs (Chrome Plated)
• Pickguard: 3-Ply Synthetic Tortoise Shell or 3-ply Black/White/Black
• Pickup Frames: Hagstrom “Half Open Chrome” Humbucker Frame Set
• Strap Buttons: 2
• Strings: D'Addario (10-46)

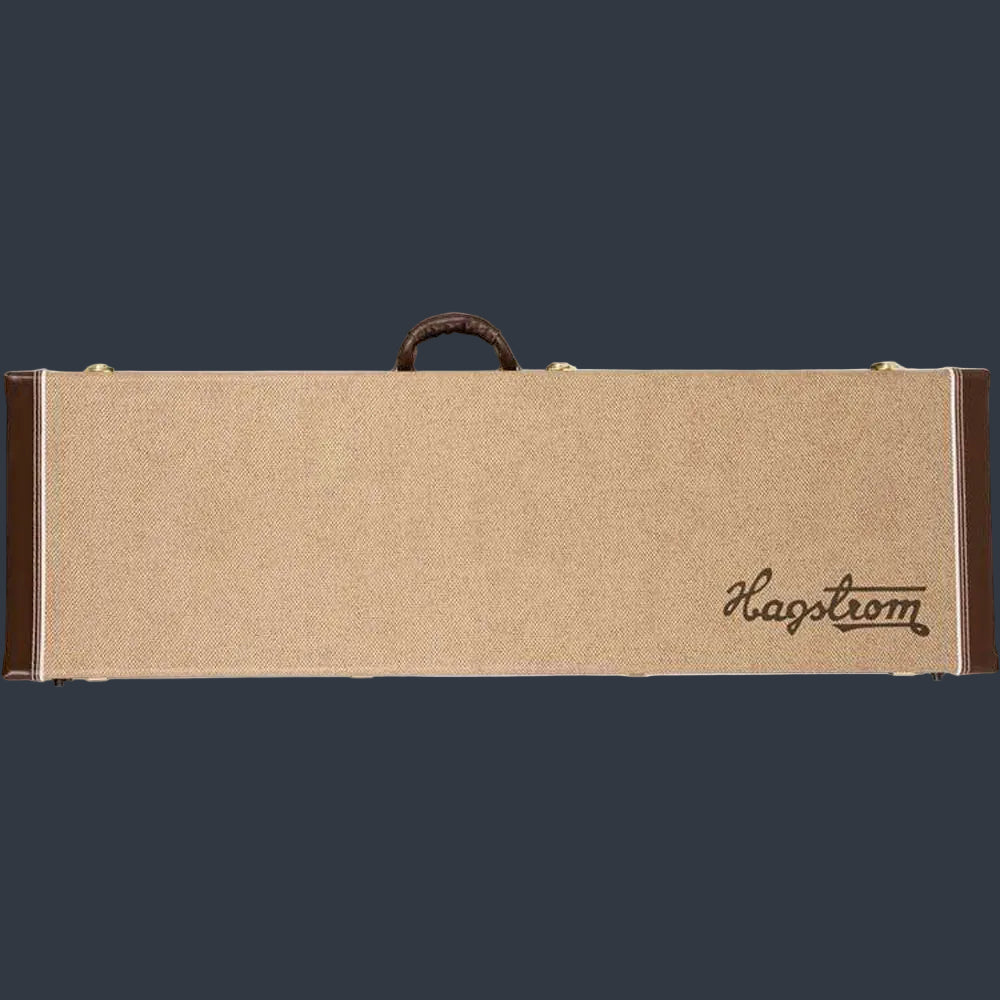

• Case: YES
