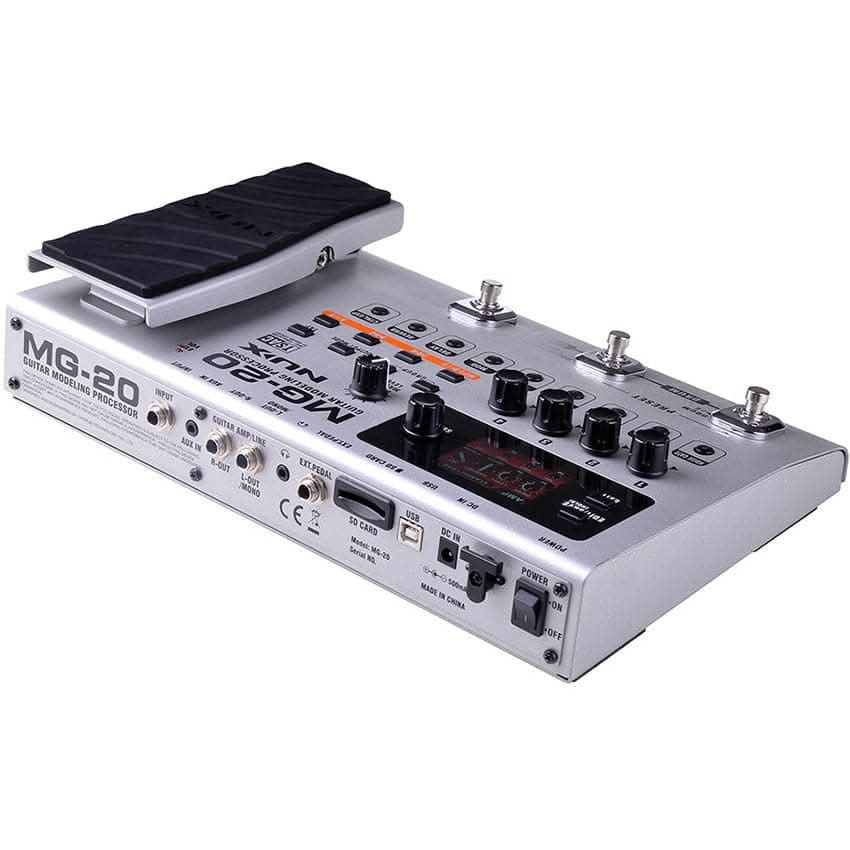

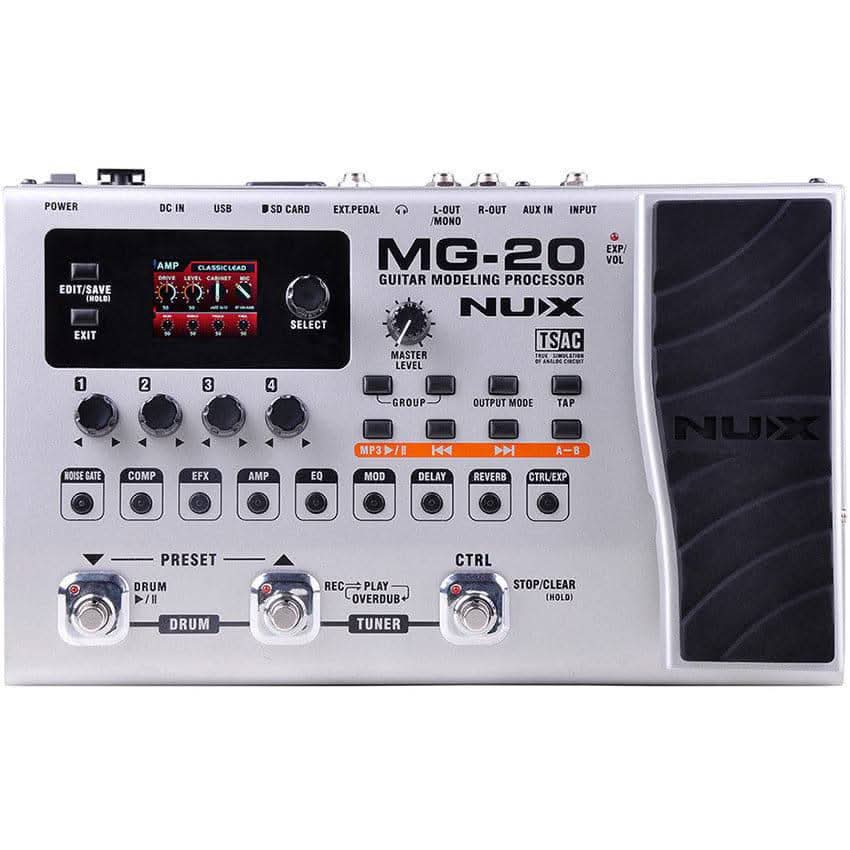

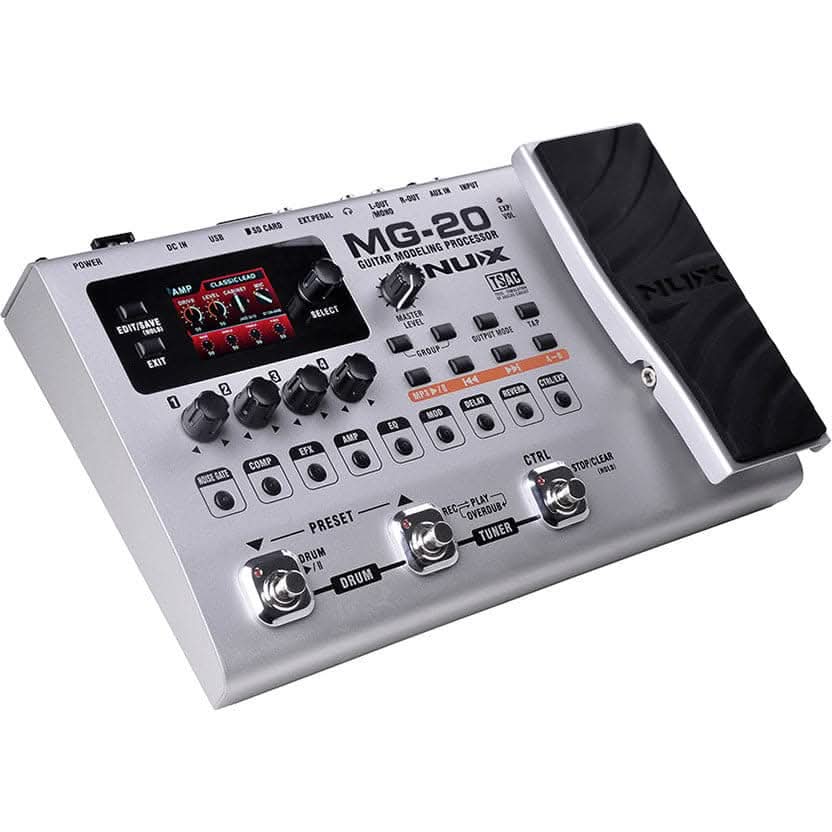

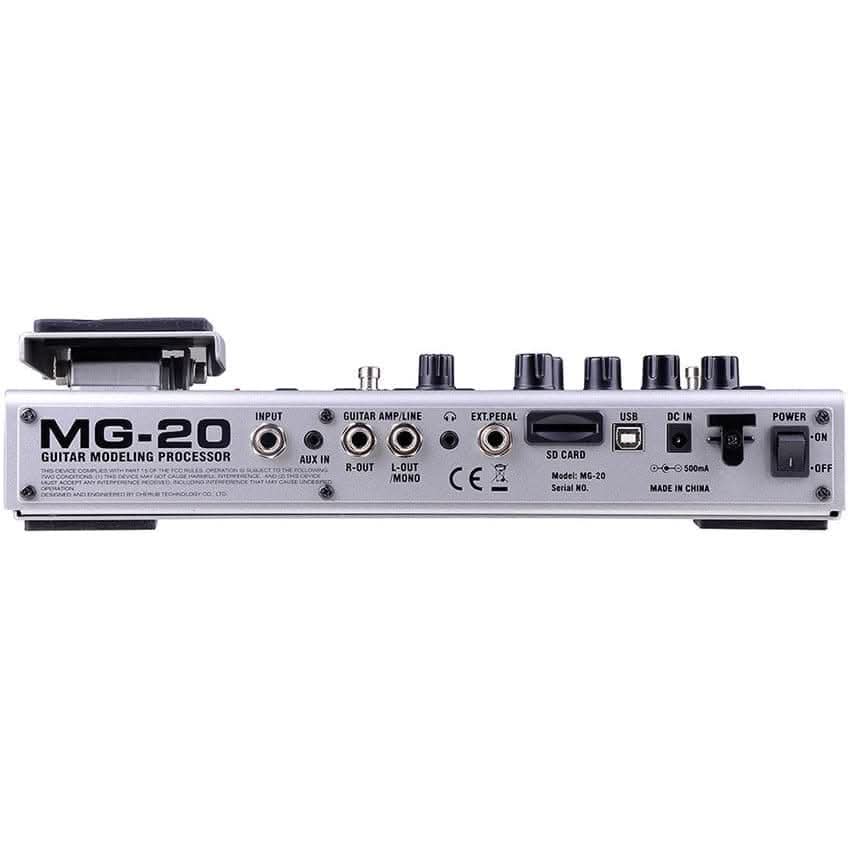

NU-X MG-20 Guitar Modeling Processor

The NUX MG-20 has a wide array of effects and comes loaded with 60 beautifully-crafted and newly assembled DSP effects, plus 16 of the most preferred and realistic amp/cabinet emulators. And equipped with high quality essential guitar sounds like overdrive, distortion, compression, EQ, delay, reverb and all modulation effects such as Chorus, Phaser, Flanger, Tremolo and more.

From your guitar to the speakers, your tone is under control!

Noise Gate

MG-20’s built-in noise gate can eliminate the unwanted noise without affecting your tone. Threshold control sets the noise level you want to filter out. Decay parameter lets you adjust how fast the sound fades out when the input signal becomes lower than the set threshold.

Compressor

Compression normalizes the dynamic range of an instrument. MG-20’s compressor makes the output of your guitar more consistent, you can control the compressor sensitivity and output level to adjust the compressor for your essential needs.

Overdrive / Distortion / Fuzz

You can choose one of the 8 drive sounds from Tube Screamer overdrive to Metal Distortion including Fuzz. Each tone has its own characteristic sound and comes with its own parameter controls. This will be your main sound.

Amplifier / Cabinets

You can connect the MG-20 directly to a PA system or audio interface, using the 16 brand new onboard amp and 13 cabinet emulators. Choose from 16 classic amp models all newly and faithfully created to be adjusted exactly as you would with the knobs and switches of the real thing. And pair your amp with one of the 13 cabinet models.

Equalizer

MG-20 comes with 2 types of equalizers. You can tune the frequencies by using 7-band graphic equalizer or 4-band graphic equalizer. 4-band graphic EQ allows you to set which frequency you want to control.

Modulation Effects

MG-20 offers the best selection of modulation effects for high quality sound enhancement. Chorus, Flanger, Phaser and Tremolo and more effects are ready to enhance your sound. Each effect has its own control parameters to customize the effect in all aspects.

Delay

There are 6 types of delay you can choose and customize. Each delay effect comes with Time, Level and Feedback controls and MG-20 also offers Tap sub-division control. You can customize the delay speed by using Time and adjust the amount of repeats by using the Feedback parameters as usual. And it can create a variety of delay patterns by changing the Tap subdivision. Delay speed also can be set by Tap Tempo.

Reverb

MG-20 has 3 types of reverb effects; Plate, Room and Hall. All reverb effects comes with Pre-Delay, Decay, Level and Hi-Cut controls. You can customize any Reverb effect to create an atmospheric sound reflection or it can create a sound like you are playing in a studio or a big concert hall

Quick Access / Additional Control

MG-20 has multi-functional 3 footswitches. You can switch presets, control the drum playing and looper function with 2 main footswitch. And it has one assignable control footswitch “CTRL”, allows you to quick access tone controls and also operate loop station. You can connect one additional external pedal via MG-20’s “EXT. PEDAL” input on the top to get better multi-fx pedal experience.

Expression Pedal

MG-20’s expression pedal controls the master volume and any selected effect / filter in real time. The pedal controls the master volume in default mode and you can switch to control effect parameter by pushing the top of the pedal a bit hard and engage the effect mode. You can assign some additional effects such as Wah and Whammy and adjust easily.

You will never play alone!

Realistic-sounded drums playing the patterns in a variety of different music genres, everything such as pop, rock, blues and more. You can record up to 60 seconds loop track with the selected drum style, MG-20 will be your best band mate. Also it has SD memory card port, it supports mp3 audio format. Also “CTRL” can be assigned as a mp3 players Start/Stop button, everything is under your foot.


Now you are ready to rock!

Features:

• Large 2.4 inches color TFT LCD
• Drum Machine and Loop Station
• Tuner
• Additional Control Switch
• Built-in MP3/WAV Player
• User Friendly Interface / Easy Access
• Total of 60 Effect Models
• 36 User Presets + 36 Factory Presets
• Output Modes
• 32-bit Floating Point DSP Processing
• USB Port for Updating Software and tone editing.

Specifications:

• Sampling frequency: 44.1 kHz
• AD/DA conversion: 24bit
• Frequency Response: 20Hz-20000Hz ± 1dB
• THD+N: -93dBu(<0,003%)
• Dynamic Range: 110dB
• Input: -20dB
• Output: -10dB
• Power: DV 9V
• Dimensions: 330(L) x 210(W) x 83(H) mm
• Weight: 3.15kg

** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
