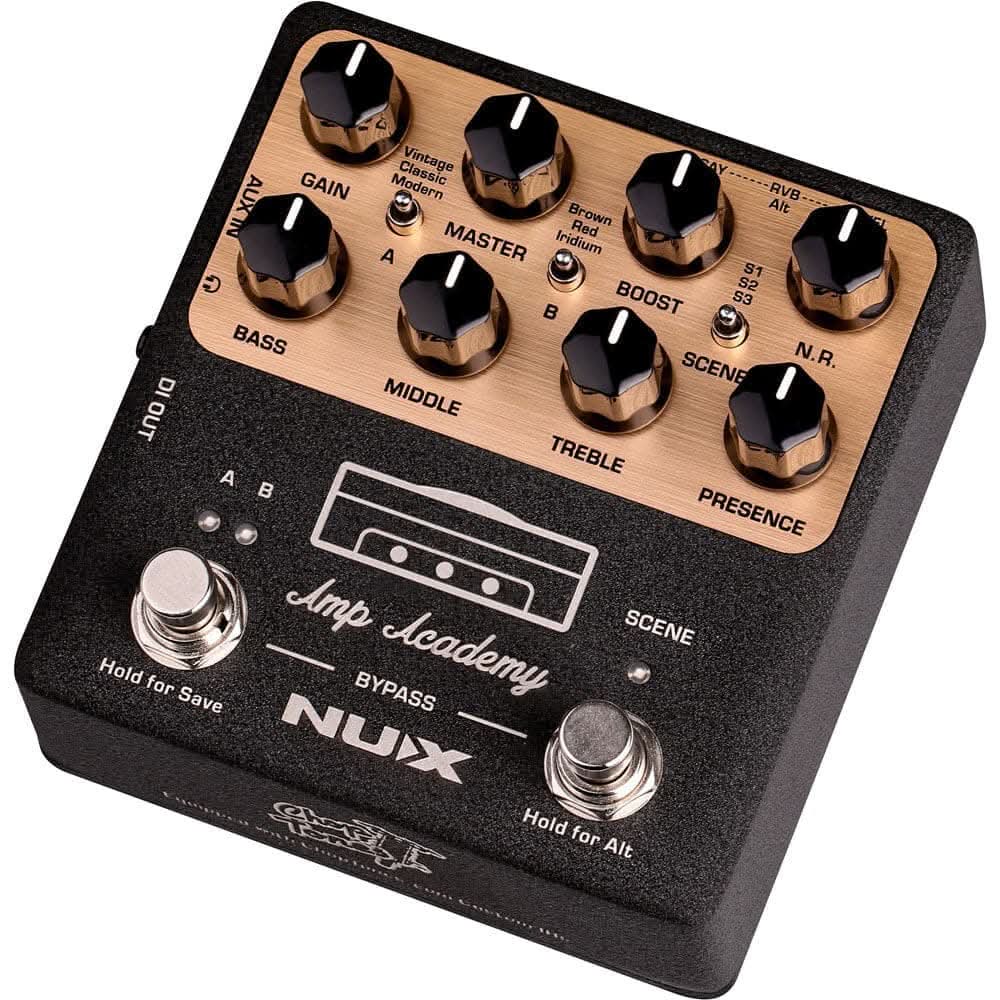

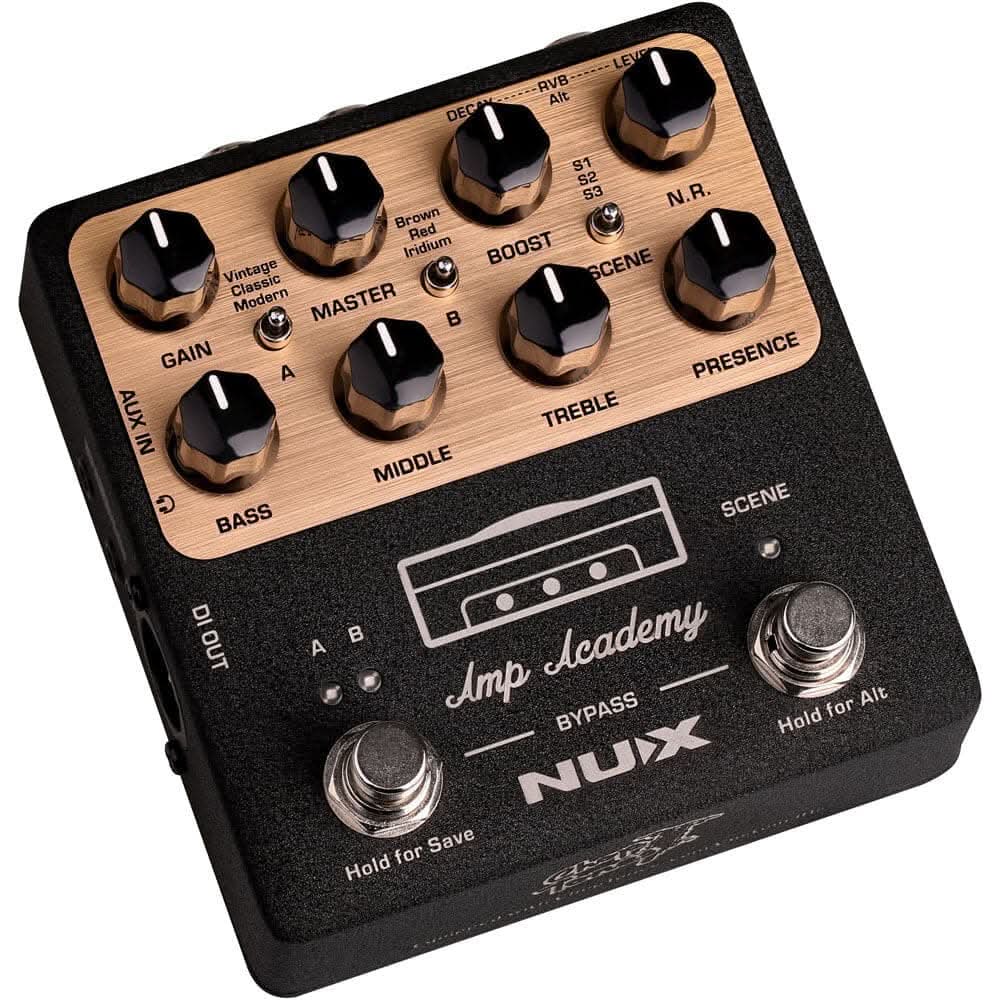

NU-X Verdugo Series Amp Academy Amplifier Modeling Pedal
NU-X Verdugo Series Amp Academy Amplifier Modeling Pedal
SKU:NXNGS6
Out of stock
Couldn't load pickup availability
Nowadays the Amp-less approach is quickly becoming a trend for modern musicians, like guitarists who appreciate a variety of pedals and amps, but don’t have the luxury of a roadie crew to lug all of them around.
Amp Academy inherits NUX TSAC-2K (White-box Amp Modeling) algorithm which delivers the sound and feel of world-class tube amplifiers in a super-portable stomp-box enclosure. And, its huge headroom and dynamic range is a pedal friendly platform.
Features:
- Pro-Level Amp Modeling with Bias Tweaking
- 7 Independent moveable signal blocks with Send/Return effect loop
- Intuitive operation and editor software
- 1024 samples IR resolution and 3rd party IR loader slot with auto format editor

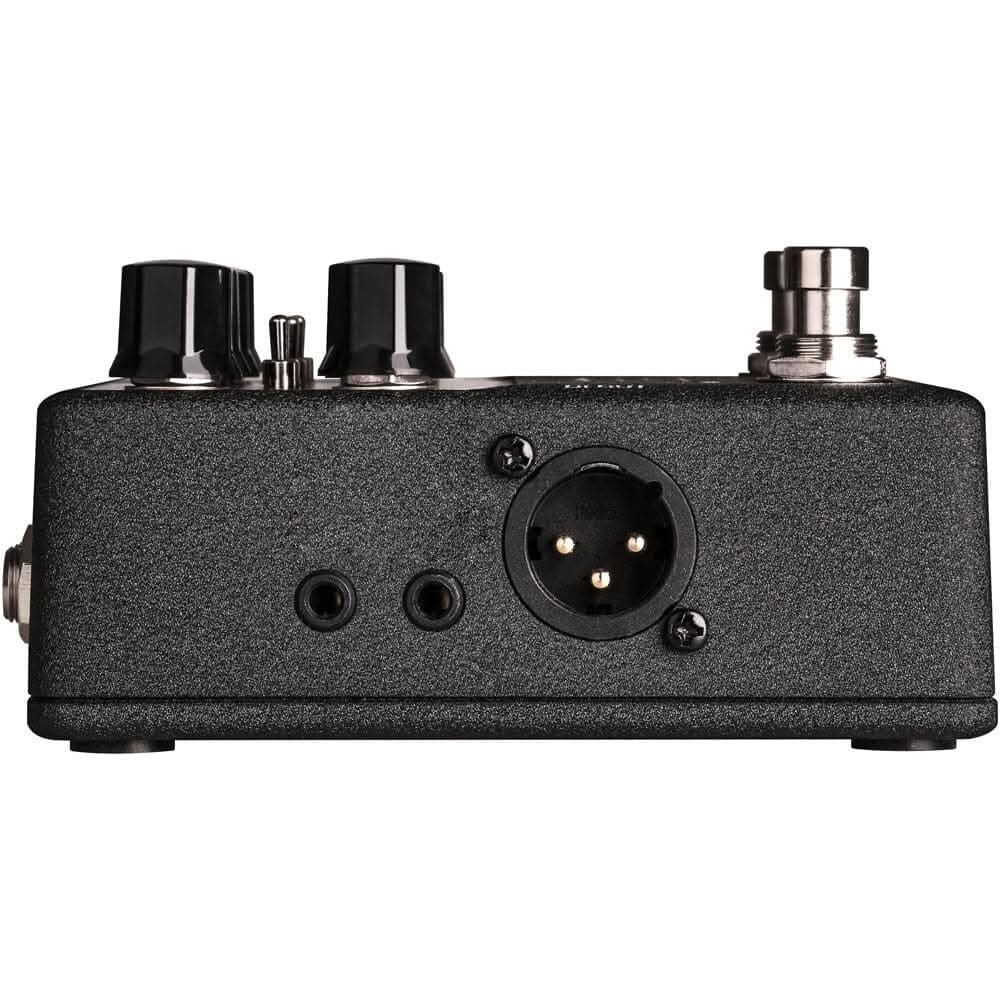

- Versatile application scenes with independent 1/4" & XLR IR outs
- Ultra-low system latency (1.2ms) and premium powerful NXP RT DSP(1GHz)
- Comes with Insert Y-cable for send/return effect loop
- USB recording interface, firmware update, AmpAcademy™ editor software
- Ultra-wide dynamic range: 110dB Specifications
GO DIRECT FOR VARIOUS APPLICATIONS
On Stage:
Add Amp Academy to any pedal chain and connect to a mixer or PA system for excellent tone, control, and flexibility during live performance. Monitor through the in-house monitoring system or in-ear monitors. For a dedicated personal on-stage monitor, connect your pedalboard to a powered FRFR speaker.
NOTE: Because the purpose of Amp Academy is to deliver amp and cab tones, it is not recommended to enable Amp Academy “in-front” of a guitar amp. If you use the same pedalboard both with an amp and direct-out situations, simply toggle IR OUT switch to DOWN position to bypass the IR signal when using your board with a guitar amp. (We suggest connecting to a 1/4” OUT to amp’s power amp in / return.) Engage IR signal with DI out to powered FRFR speaker, or PA system.
NOTE: If you want to engage/disengage IR signal with DI OUT, please HOLD A/B foot switch and power the pedal. IR ON: A/B indicators will flash 3 times. IR OFF: A/B indicators will NOT flash.

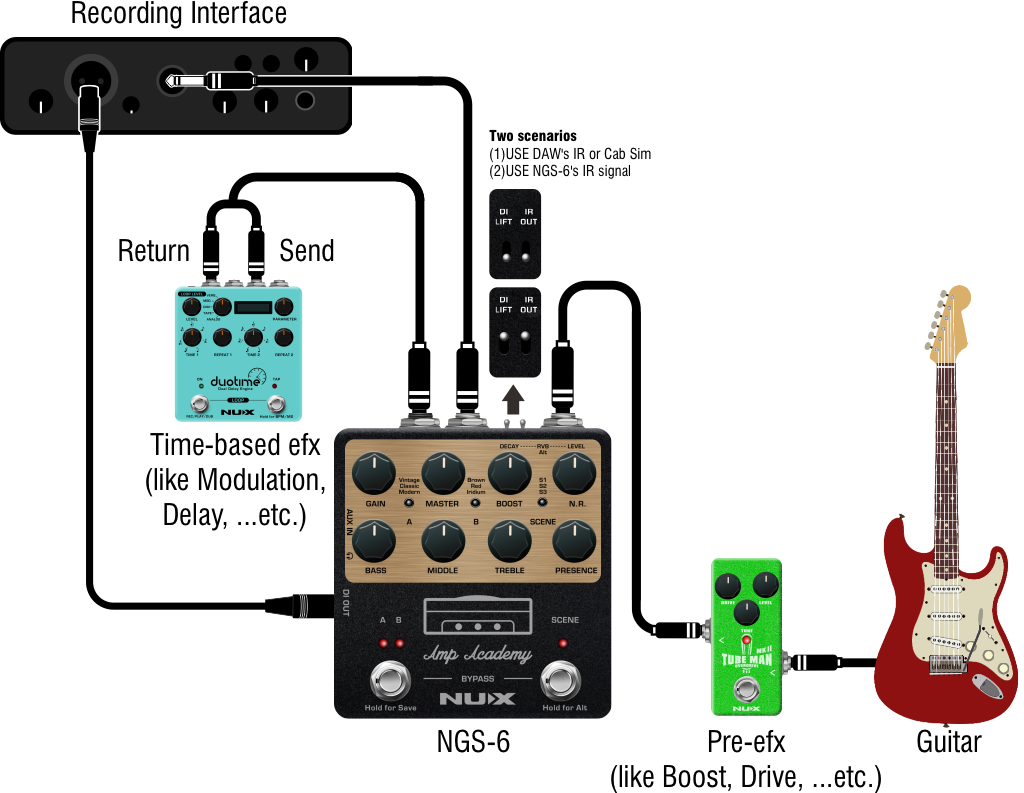

In Studio:
Connect Amp Academy directly to a recording interface for excellent guitar tone, instantly, without the need to set up an amp or microphones. (Toggle IR OUT switches to UP position if you want to use the IR signal for 1/4” out. If you want to engage/disengage IR signal with DI OUT, please HOLD A/B foot switch and power the pedal. IR ON: A/B indicators will flash 3 times. IR OFF: A/B indicators flash will NOT flash.)

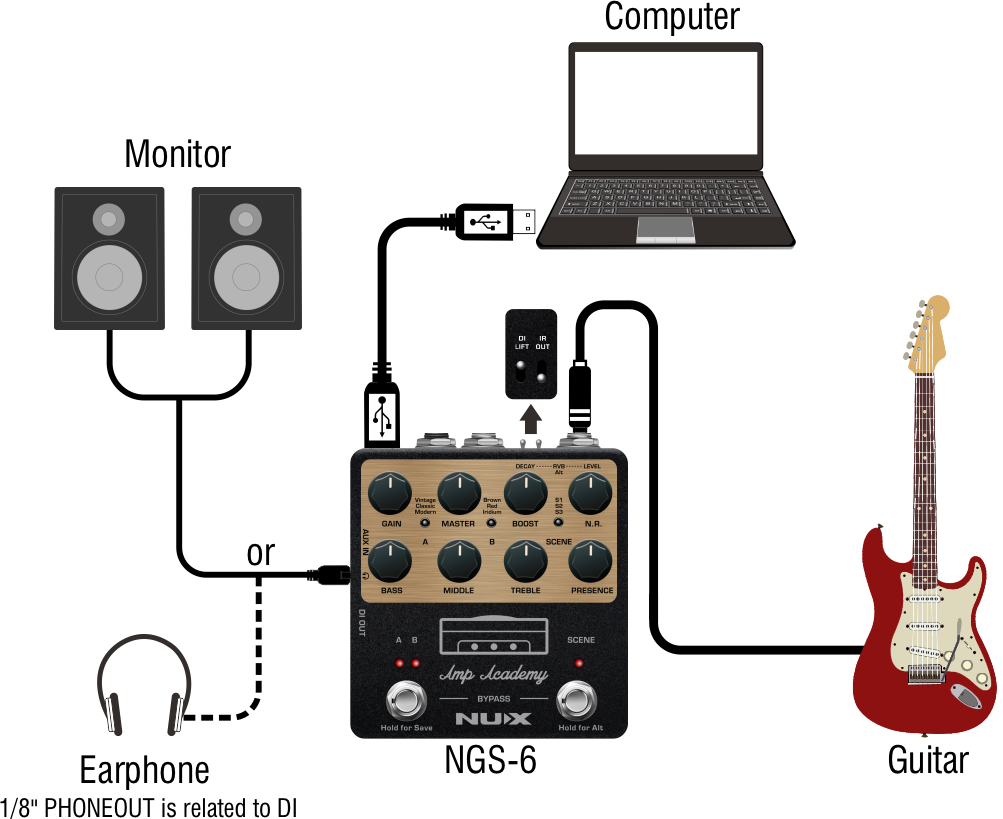

At Home (Silent Practice):
Connect headphones or monitors directly to Amp Academy’s 1/8” PHONE OUT to experience immersive classic amp tones in a natural sounding room without an amp.
AMP MODELS
Amp Academy features 6 legendary amp models like Vintage (Fender Twin Reverb), Classic (Fender Vibro King), Modern (Mesa Boogie Mark I), Brown (Friedman HBE), Red (Mesa Boogie Dual Rectifier) and Iridium (Bogner Uberschall). The iconic TSAC-2K (WHITE-BOX algorithm) Amp Modeling offers you realistic amp feeling and fast playability response. Note: You can choose back amp models on editor software.
*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects, Cherub Technology CO. LTD. or Pro Music Australia.
IR LOADER
1024 samples IR resolution with 3rd party IR loader capacity makes it easy to bring your favorite amp sound everywhere. Note: 6 IR slots (with Amp slots), 12 Choptones custom IRs + 16 user slots 32bit/48kHz (Amp Academy editor will convert the WAV format automatically.) You can get 10 free factory IRs while downloading edit software.

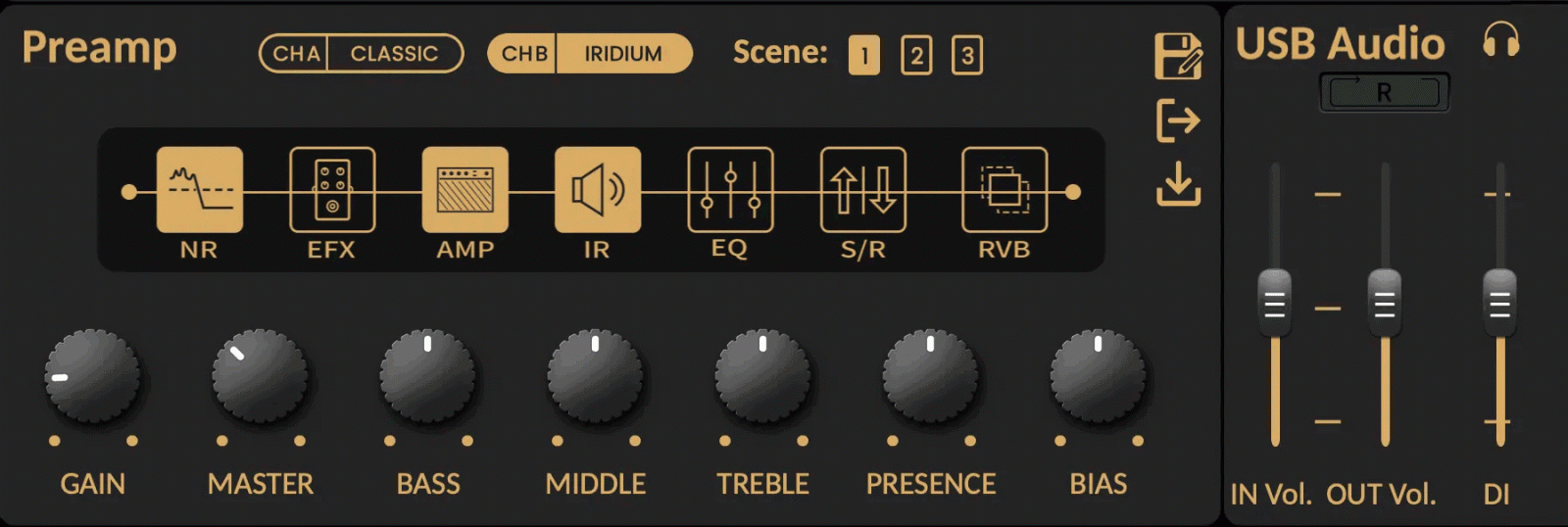

Amp Academy editor offers you IR loader with user friendly tweaking like Level / Low Cut / High Cut, it also convert the WAV format automatically. Equipped with ChopTones.com Custom IRs.

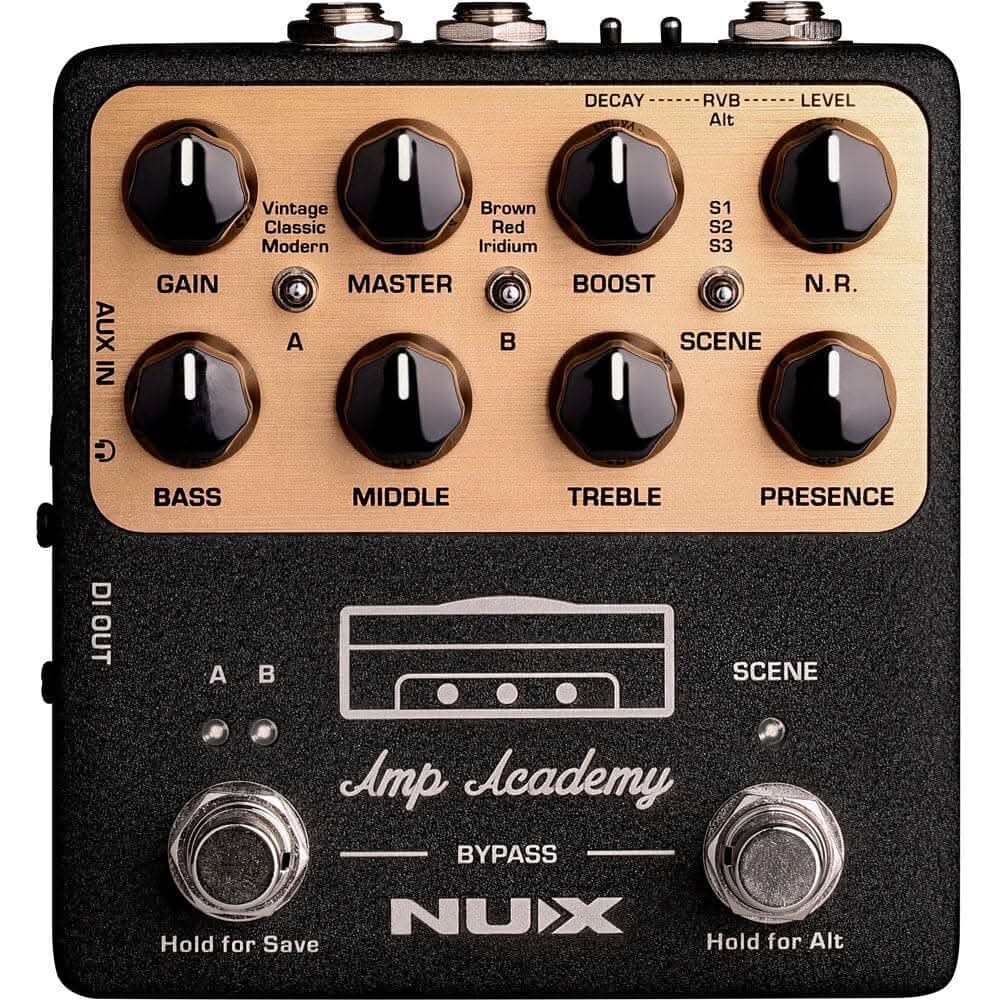

A/B AMP FOOTSWITCH & SCENE FOOTSWITCH
The A/B foot switch lets you switch from clean amp style to crunch amp style immediately. Besides that, the SCENE footswitch can toggle SCENE1, SCENE2, SCENE3 sequentially. You can save your custom block engagements with 3 scenes, it offers you all the live application needs.

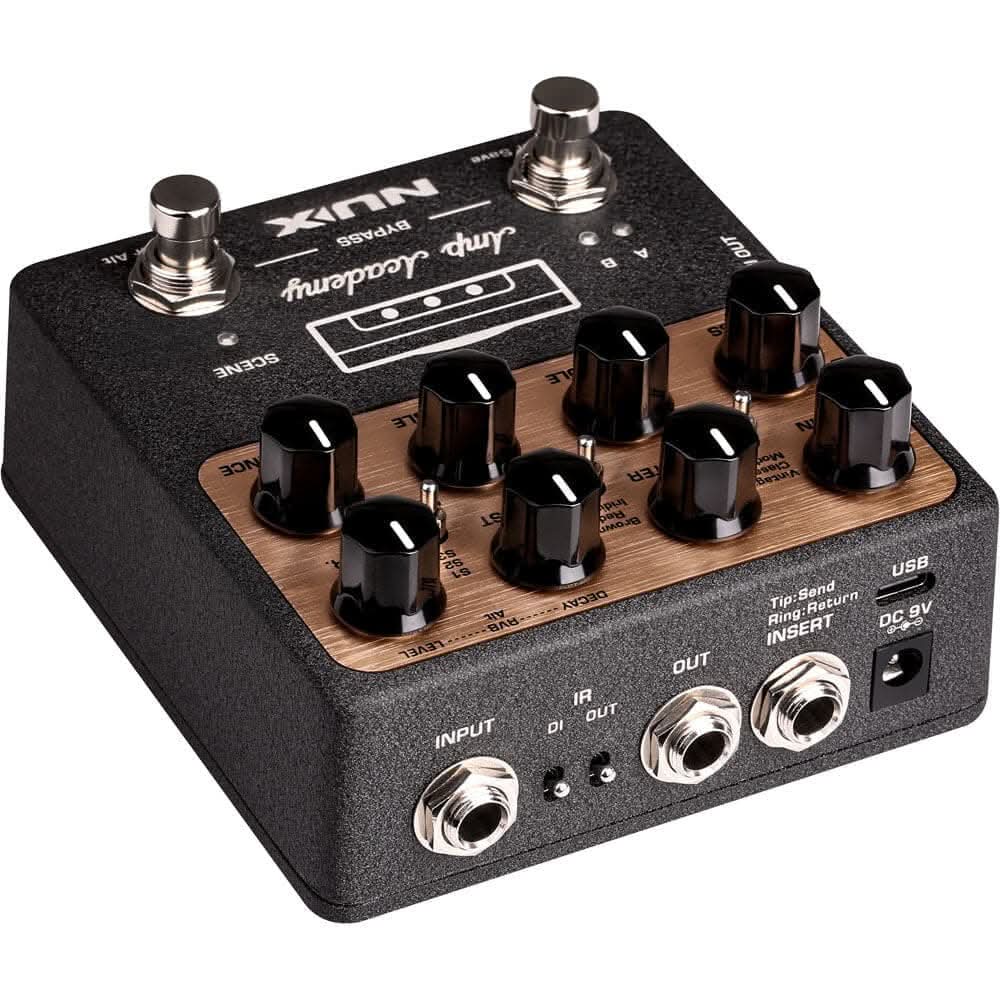

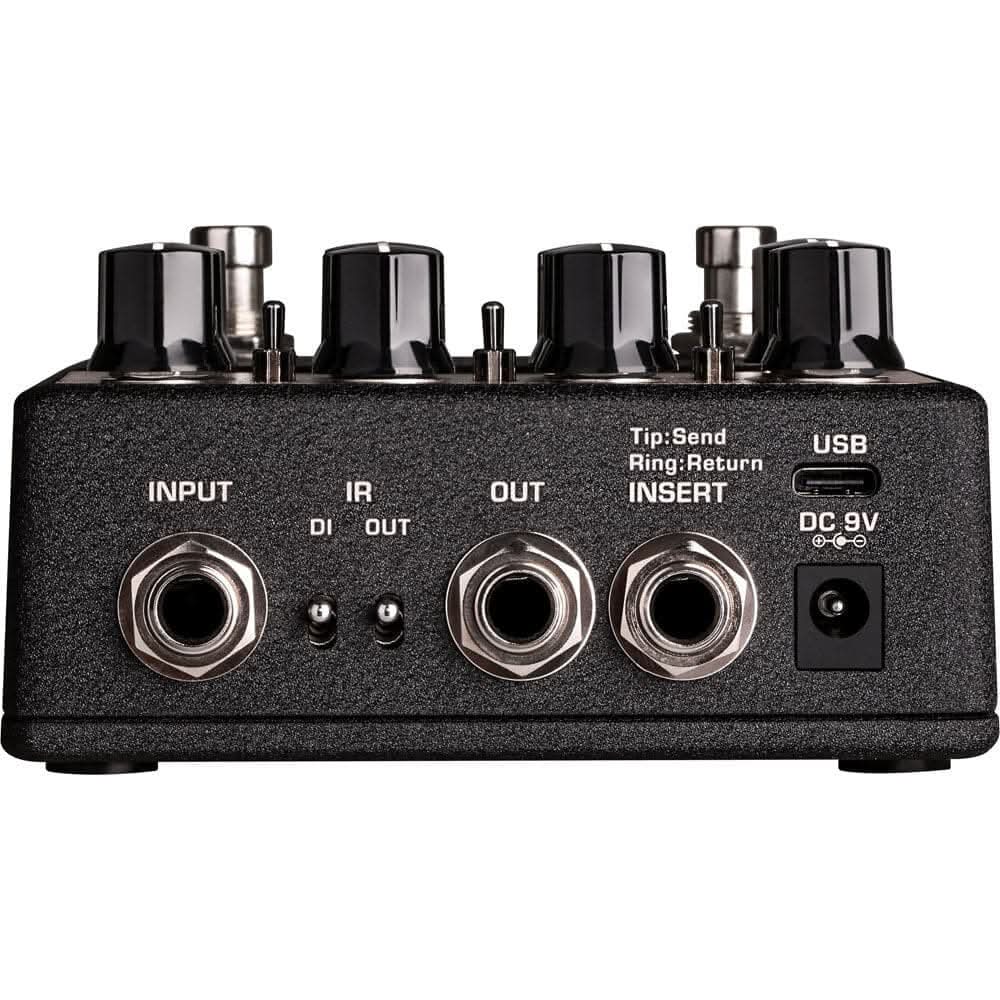

PREMIER COMPONENTS AND RELIABLE HARDWARE

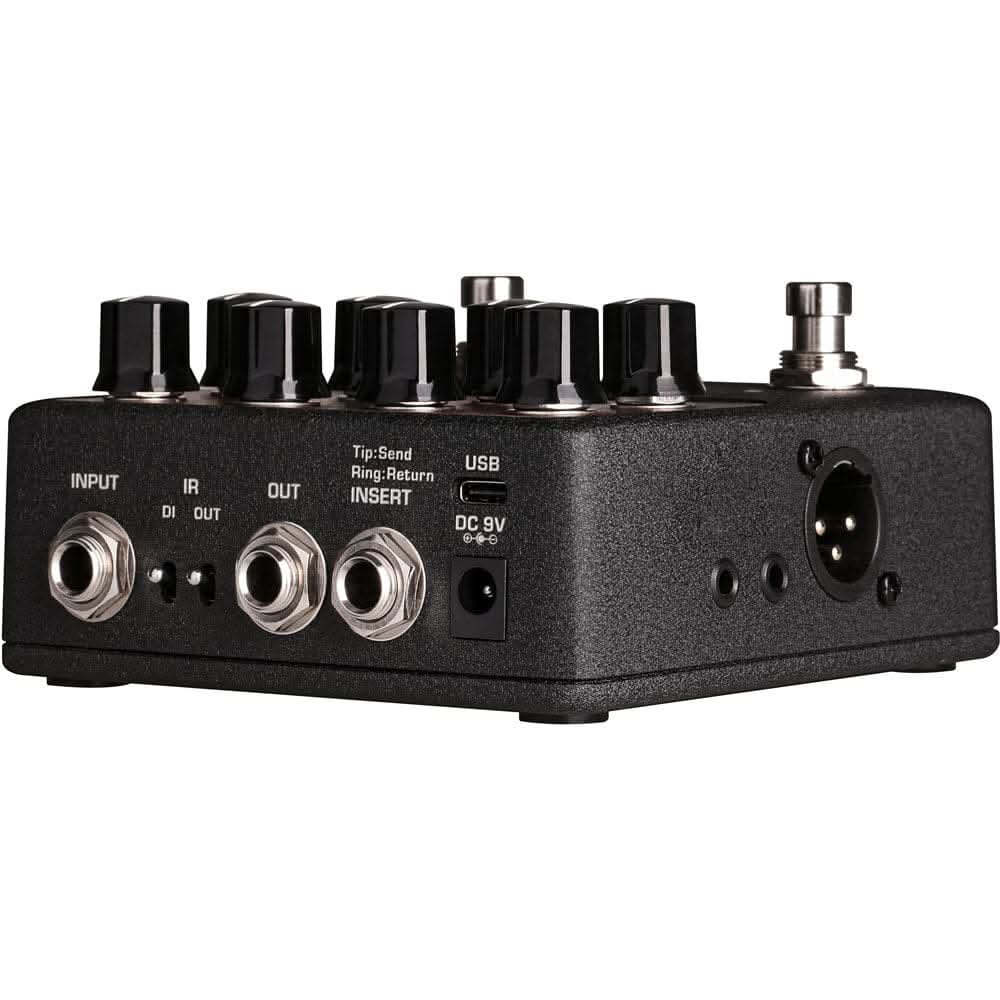

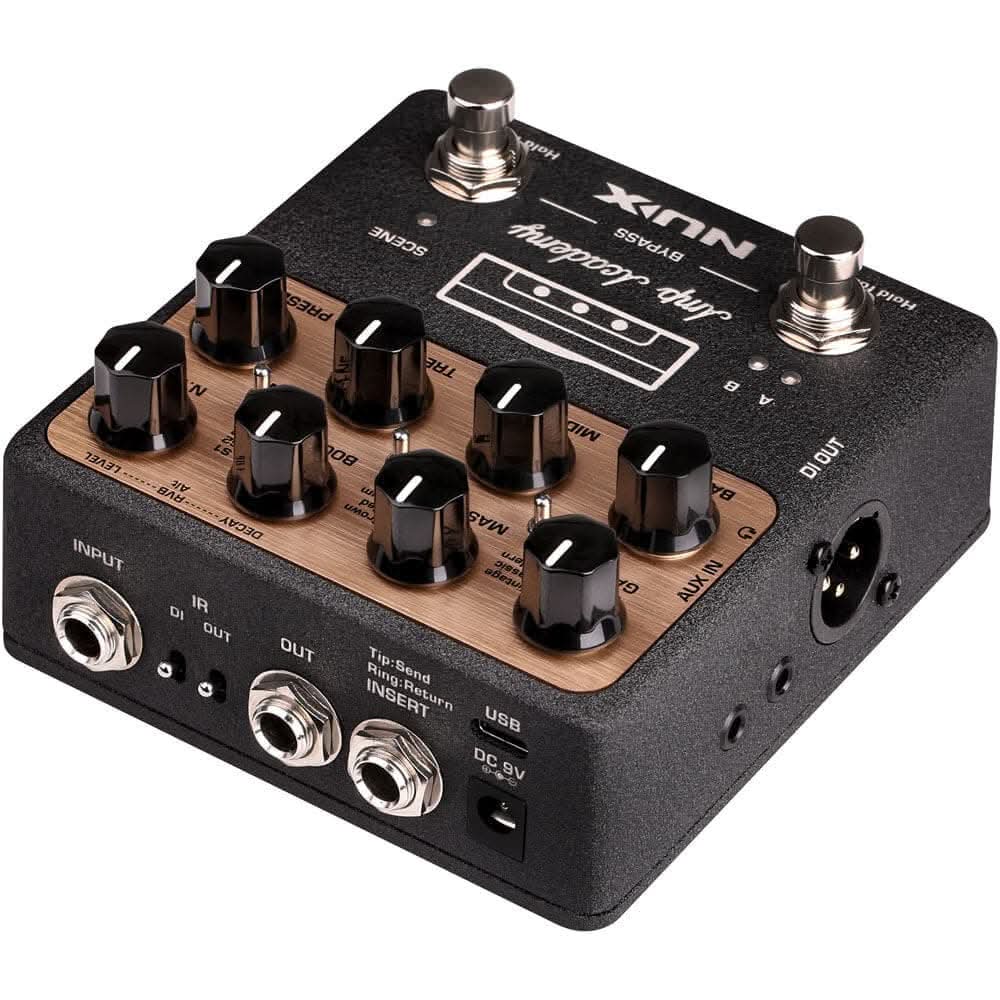

Amp Academy features Neutrik jacks, Alpha pots, NXP RT super powerful DSP (1000MHz), 4 In TI PCM1840 ADC, 4 Out AKM AK4454 DAC, …etc. These promise users great experience and reliable using. 1.2ms ultra-low system latency with 110dB ultra-wide dynamic range, this offers you realistic amp-like playability and pedal friendly platform.
ESSENTIAL EFFECTS AND LOOP FOR 4CM
- EQ: 6-Band EQ for guitars
- S/R: Use the included INSERT Y-cable to connect other effects for 4CM.
- RVB: ROOM, HALL, PLATE, SPRING, DAMP
- Noise Reduction: Simple and useful especially for silent practice.
- EFX: ROSE COMP, K COMP, KATANA, RC BOOST, AC BOOST, T SCREAM, MORNING DRV, RED DIRT, CRUNCH
USB AUDIO STREAM
For home studio and silent practice, Amp Academy’s USB audio stream makes it the Swiss Army Knife of interface capability. Connect the USB to your PC, and you can record tracks, run Plug-In, and even do live-stream with Amp Academy.

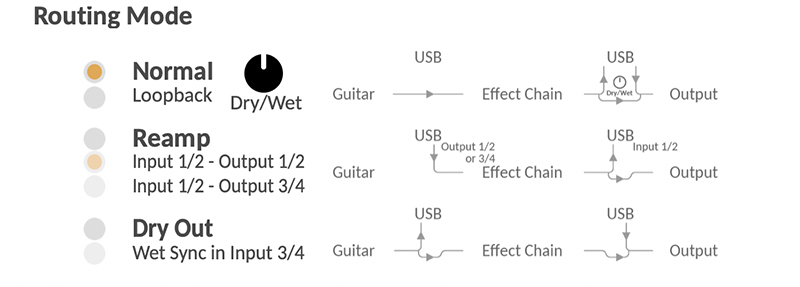

In Normal mode, you can choose Loopback to play the playbacks from PC to do live stream.
Re-amp: Amp Academy offers 4 tracks for Dry Out and Re-amp recording applications..jpg)

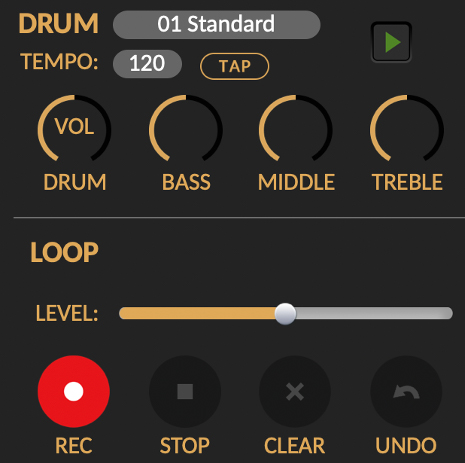

DRUM & LOOP
Besides Amp-less application, silent practice is often a must-have for modern musicians. Amp Academy editor offers Drum & Loop function to let you enjoy playing guitar in more places more often

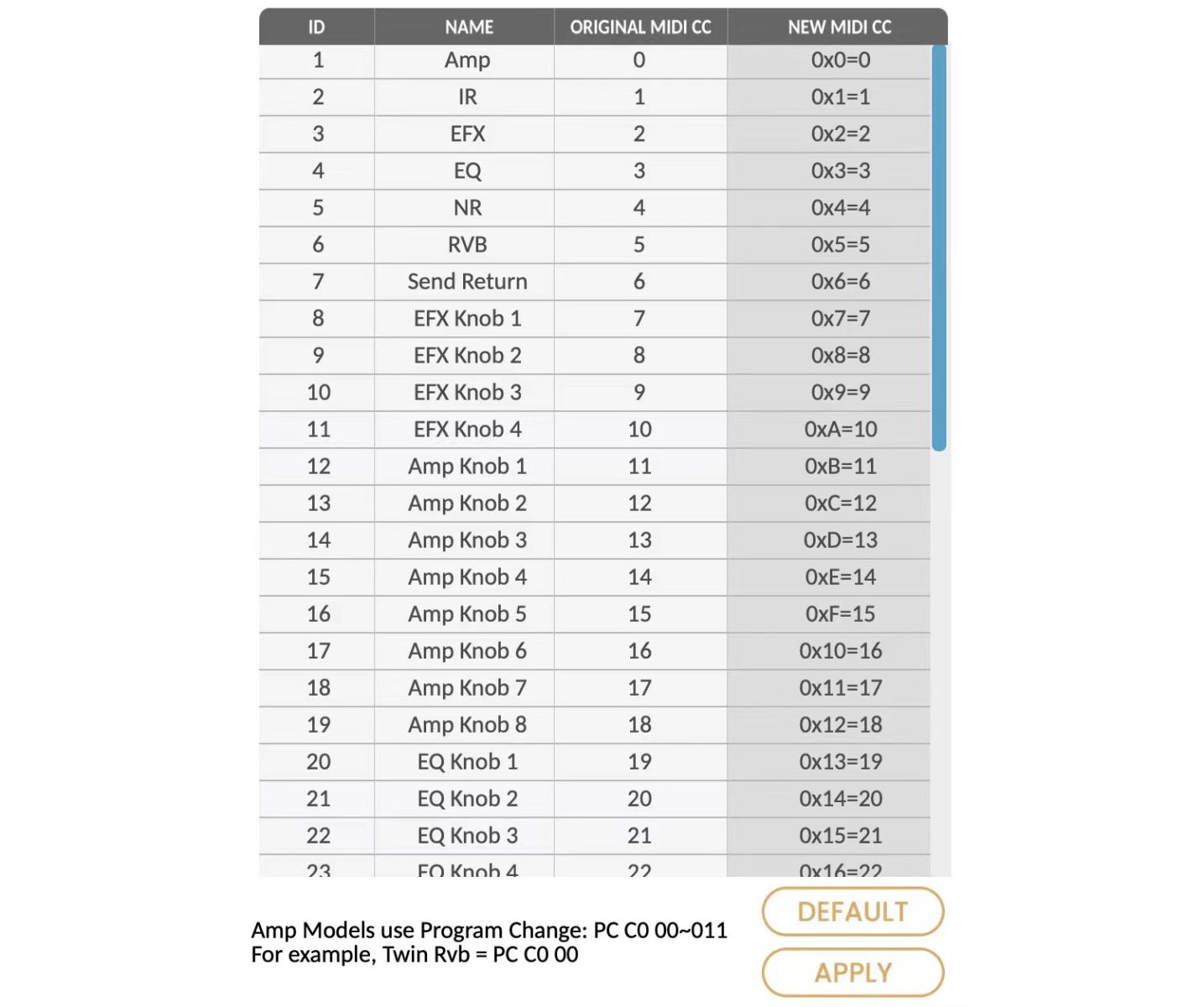

MIDI IMPLEMENTATION
You can assign the MIDI signal with Amp Academy with editor, and implement MIDI through USB port.
