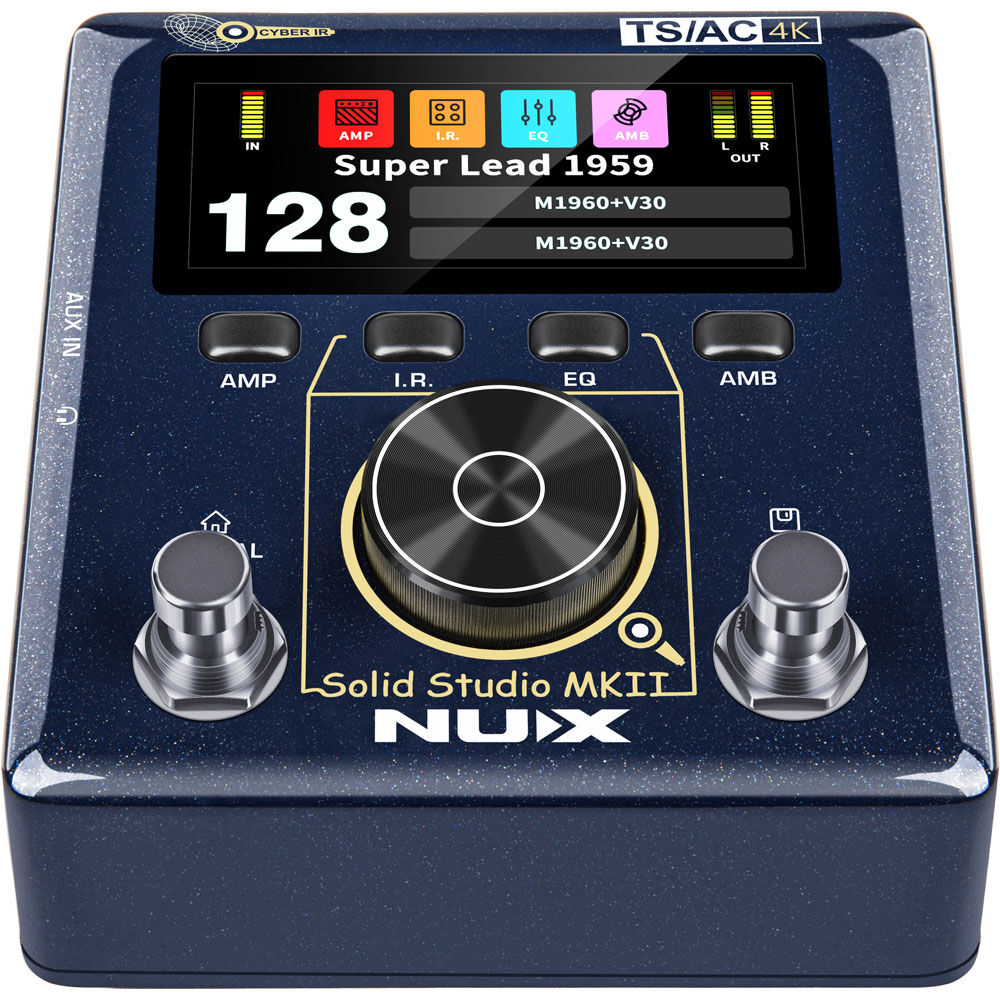

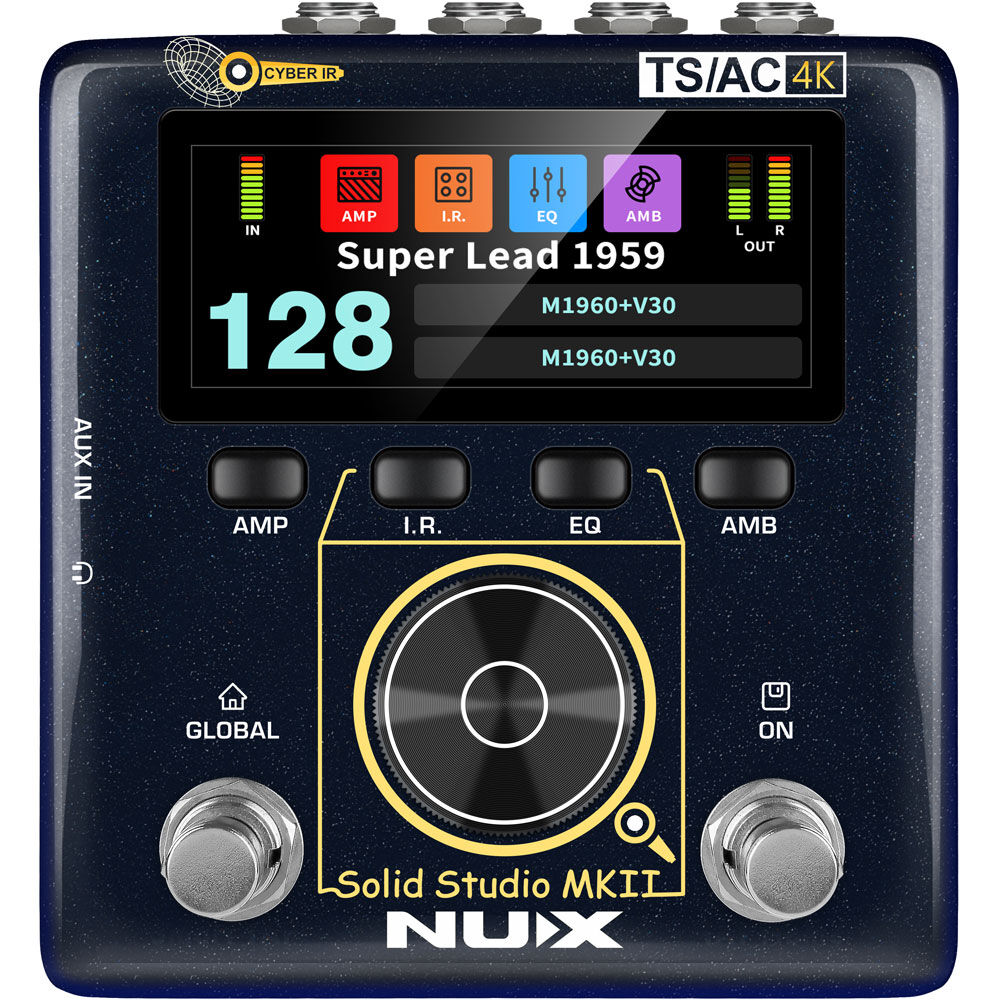

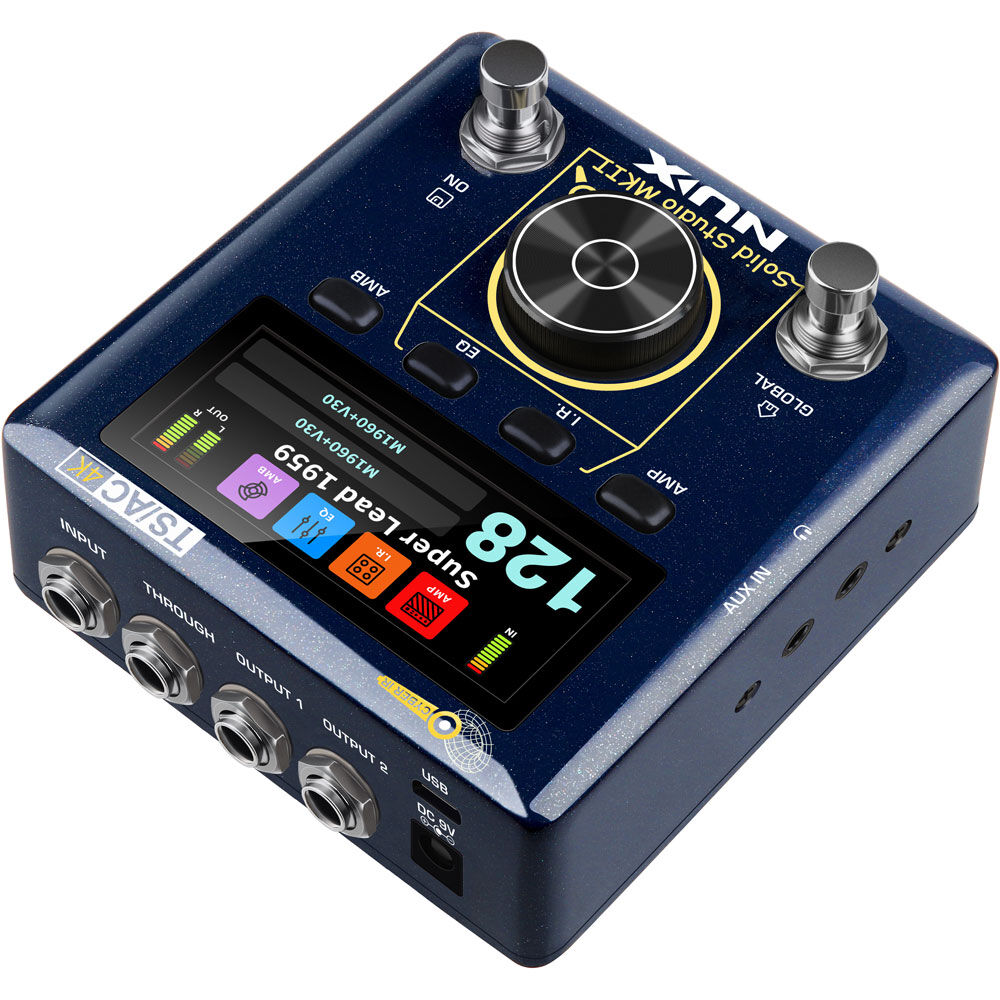

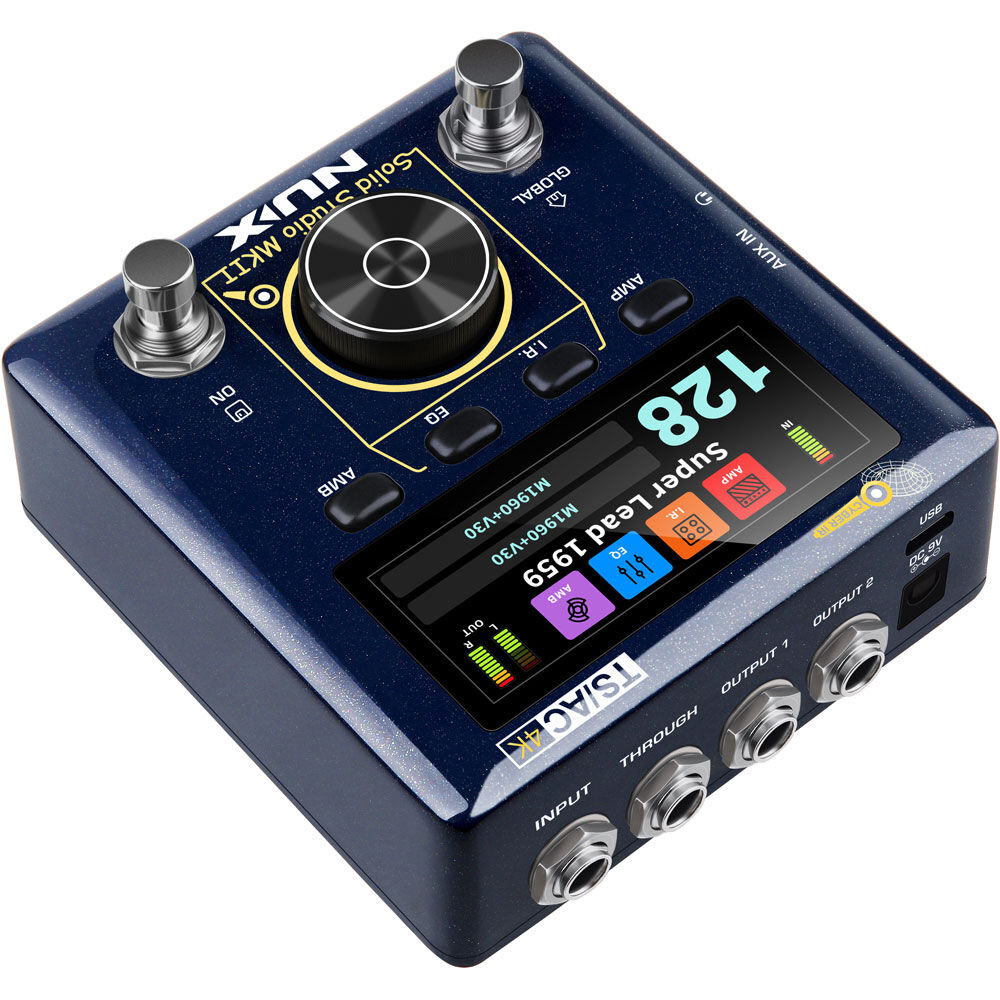

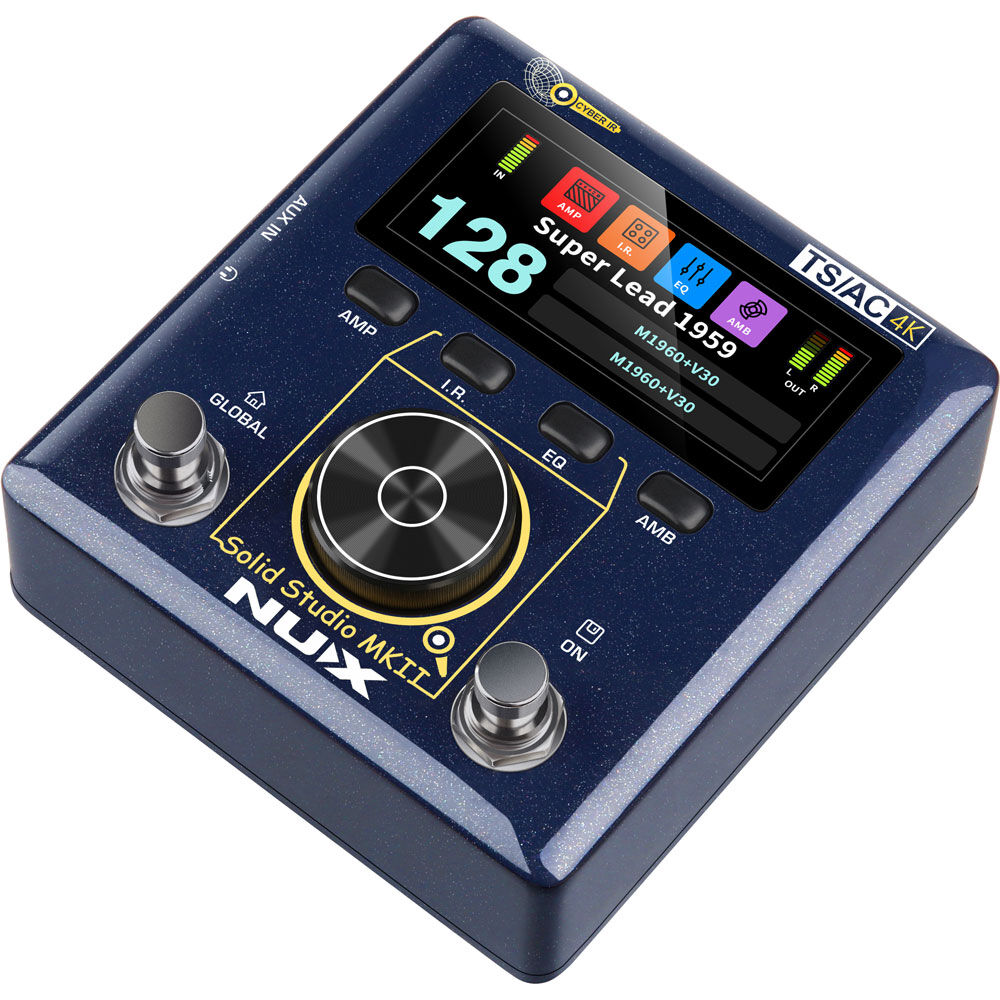

NU-X Verdugo Series Solid Studio MKII Preamp, Power Amp Simulator & IR Loader

The Solid Studio MKII (NSS-6) has the most iconic Physical Amp Modeling algorithm: TSAC-4K with an independent Preamp and Power Amp combination.

TSAC-4K (White-box) algorithm brings realistic playability and the tube amp’s negative feedback response. This groundbreaking technology will offer you the best performance, and you can experience that ANALOG FEELING.

FEATURES:

• Stereo CYBER IR™ Engine with dual 1024 samples resolution.
• Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
• World-class amp modeling algorithm with full functions. (Like 4 inputs for patch cable jumping). *Currently 8 classic AMP models.
• One-piece die-cast aluminum chassis.
• AMP, 1.R., EQ, AMB effect blocks with free routing order.
• 2.86" colour LCD display (960*376) with intuitive operations.
• 128 preset slots, independent L/R 60 IR slots.
• Built-in NOISE GATE, EQ, PHONES LEVEL, AUX IN LEVEL, OUT LEVEL in global setting.
• NORMAL, INJECT input modes. (INJECT to parallel the power amp signal.)
• USB audio interface, firmware update, SOLID STUDIO editor™ edit software.
• USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4" outs with GND lift, Phones Out for silent practice.
• Great Dynamic Range: 110dB.
• Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).

SPECIFICATIONS:

• INPUT Impedance: 1MOhms
• AUX IN Impedance: 10kOhms
• OUTPUT 1, OUTPUT 2 Impedance: 100Ohms
• Phone Impedance: 10Ohms
• Dynamic Range: 110dB
• Sampling Rate: 48kHz/32bit
• System Latency: 0.85ms (Bypass); 1.9ms (Effect On)
• Power: 9V DC (Negative Tip)
• Current Draw: < 600mA
• Dimensions (L x W x H): 105 x 115 x 58mm
• Weight: 450g

World Class Amp Modeling & True Stereo IR Reproduction. (1024 Samples)

Cyber IR
Our Brand New Cyber IR™ Technology is a real impulse Response reproduction with a premium algorithm that offers Microphone, Position, and Distance tweaking. Solid Studio MKII gives you Stereo IR Capabilities with ultra-low latency. (Bypass: 0.85ms; Efx Engaged: 1.9ms) *NUX collaborated with CHOPTONES IRs.

Pedal Platform: Overdrive Signal Compatibility
The Solid Studio MKII is a great pedal-friendly platform for Amp-less applications. The unique TSAC-4K algorithm replicates the Tube Amp’s response without unnatural compression. Its 110dB dynamic range and great headroom allow it to be used with most compressors and overdrive pedals.

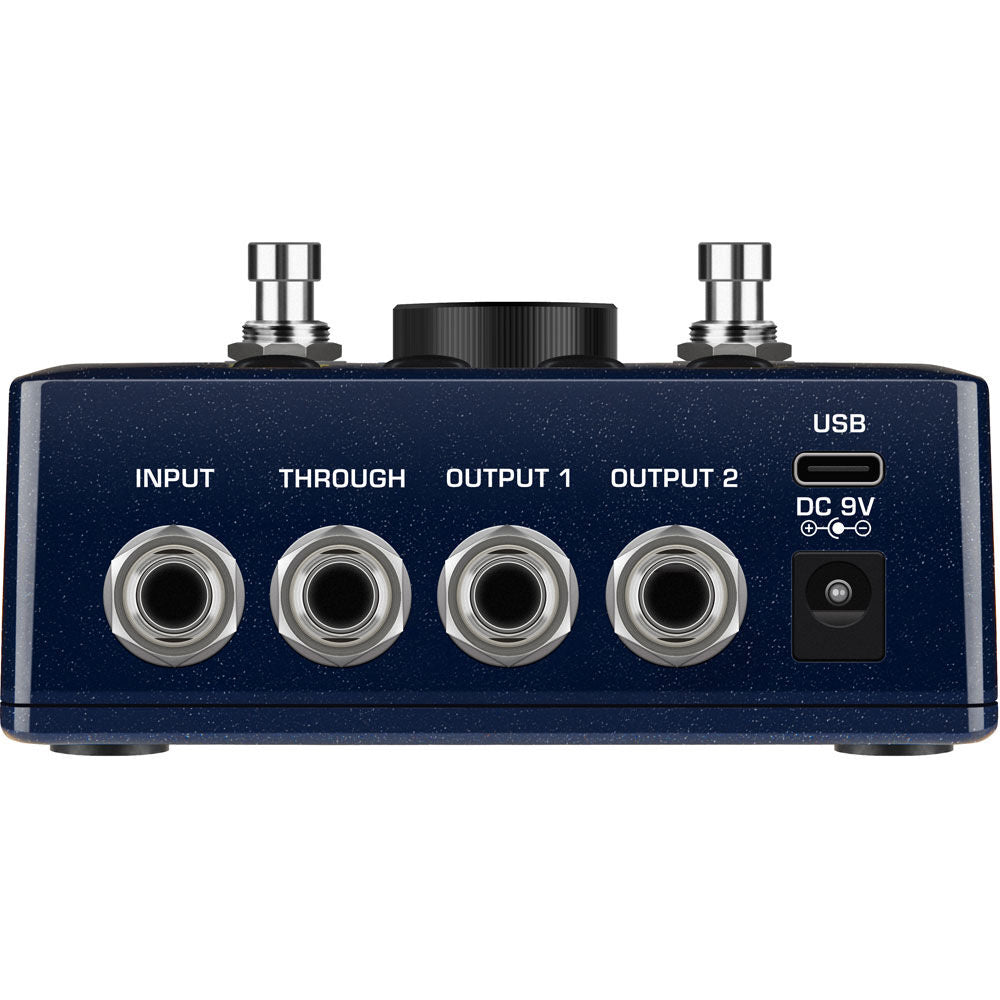

Balanced 1/4" Outputs, and Through Out

For Amp-less application, Solid Studio MKII features balanced 1/4” outputs. You can connect with PA system (mixer) directly.

You can even use Solid Studio MKII with an amp head through the amp output with a cabinet.

Headphone Output & AUX-In
For home practice, this pedal is a great solution for the Silent Guitar Rig.

Recording
USB Audio Stream (48KHz / 24bits)

Recording, Re-Amping, OTG(On-The-Go) Record Dry Sound & Play Processed Sound Simultaneously
As a modern musician, recording ideas immediately is essential. The Solid Studio MKII’s premium A/D (TI PCM1840) and D/A (AKM AK4454VN) promises great sound quality. It’s a good USB interface for recording your compositions.

Versatile IR Loader with Flexible Block Routing
60 L + 60 R user IR slots

You Can Change the Signal Block Route Freely
Solid Studio MKII has 8 ambience effects: Spring Reverb, Plate Reverb, Hall Reverb, Room Reverb, Phi Delay (Digital Delay), Tape Echo, Analog Delay, and Pan Delay.

*All the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD

** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
