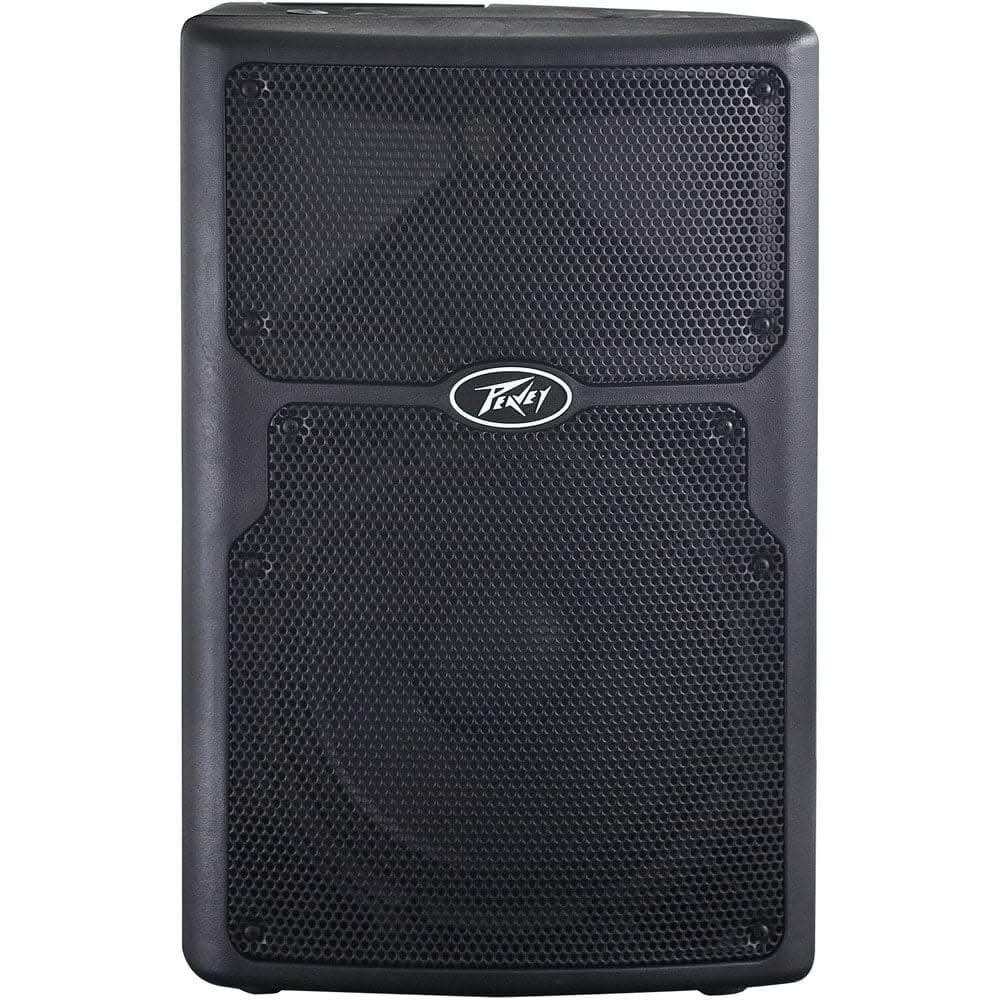

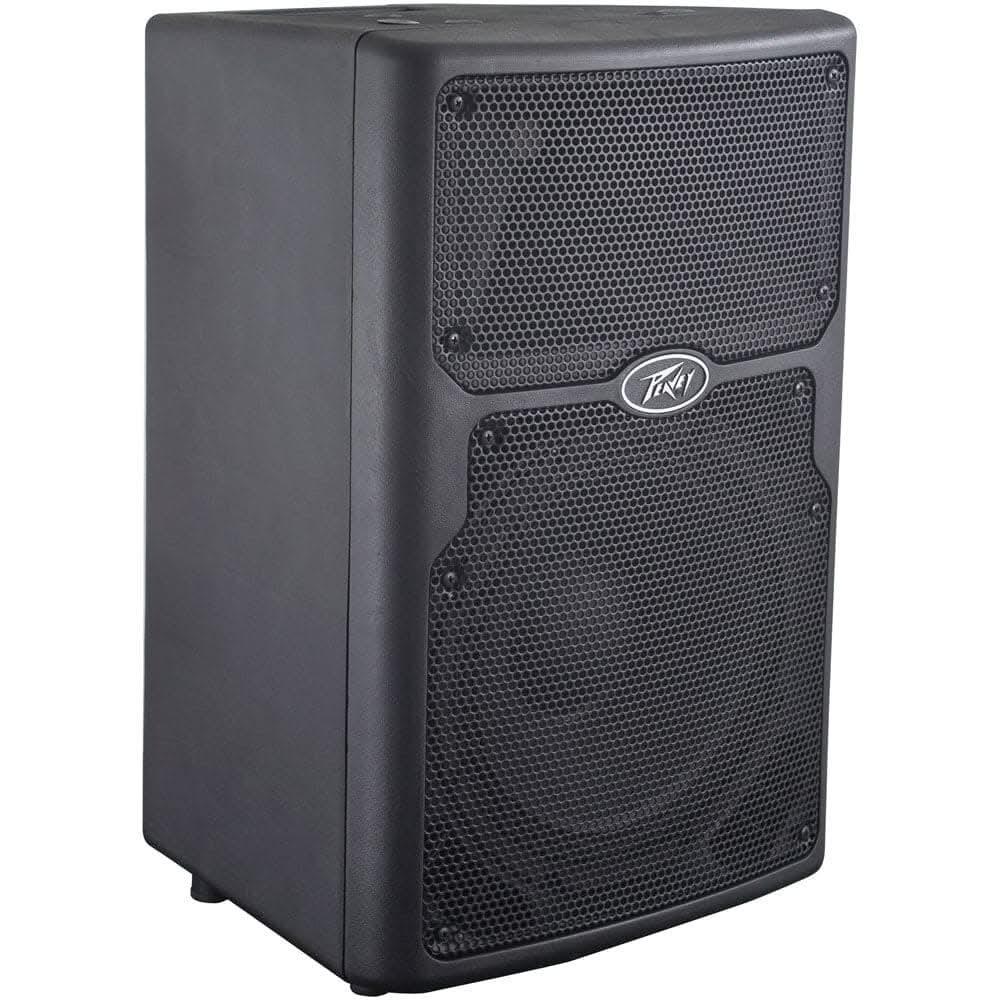

Peavey PVX Series "PVXp-10" Powered 400W, Bi-Amped, 10" Loudspeaker

The PVXp 10 features an ultra-reliable bi-amped power section that provides a total of 400 Watts of peak available power with DDT™ compression.

The PVXp 10 is a two-way sound reinforcement system based on a heavy-duty Pro 10 10" woofer and a RX 10N dynamic compression driver mounted on a 100 by 60 degree coverage constant directivity horn. It’s sleek modern appearance coupled with excellent performance offer an outstanding package.

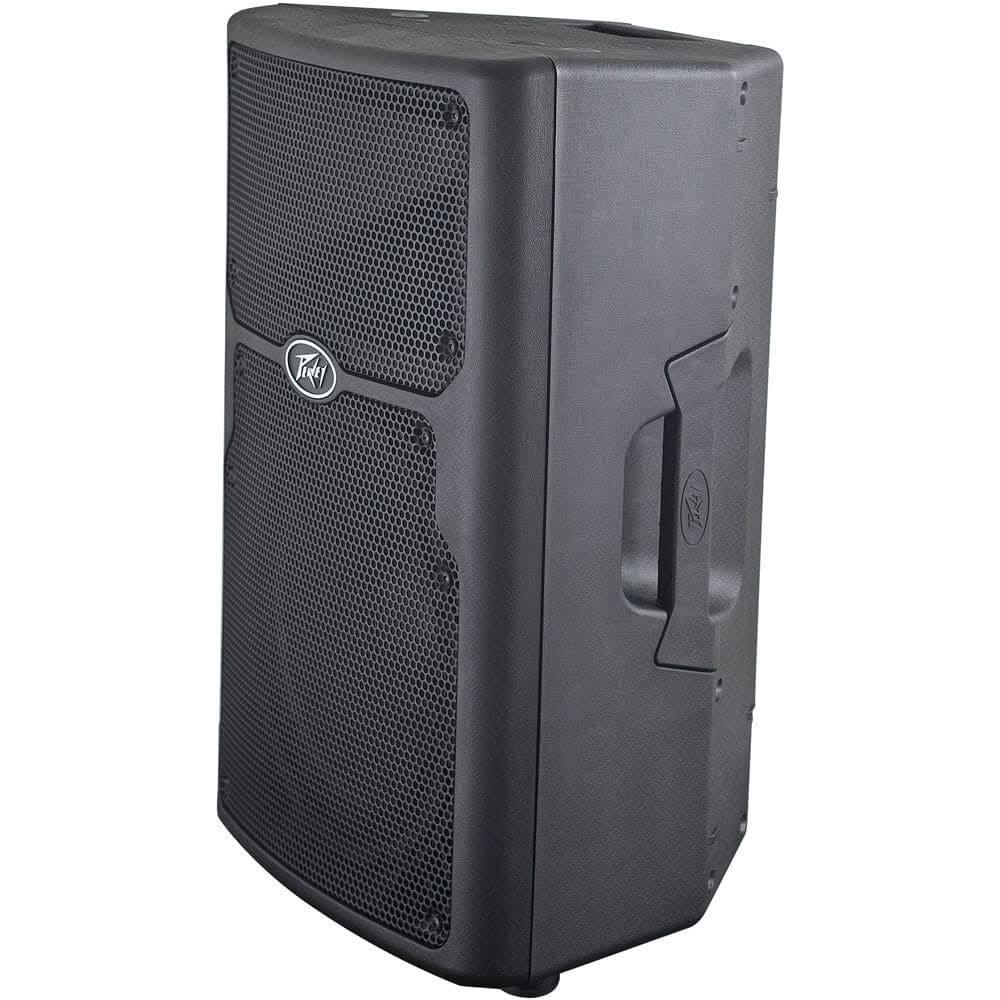

The lightweight yet rugged injection-molded plastic enclosure with molded-in stand mount cup facilitates portable use for live music or PA sound. The  trapezoidal cabinet has two handles for ease of portability, and an extra 45-degree angled section on the right side to allow use as a floor monitor. Four sets of flying/mounting points, two on the top, and two on the bottom, with a total of 12 cabinet  inserts,  provide  for the ultimate in installation flexibility. A black powder coated perforated steel grille provides driver protection and a professional appearance.

The heavy-duty 10" woofer provides a good strong low end for such a compact enclosure. The RX 10N compression driver tweeter is coupled to a constant directivity horn with smooth, even response, low distortion and good high frequency dispersion. This horn has an asymmetrical vertical polar response, aiming the main energy lobe down 10 degrees,  so it is aimed at the audience, instead of over their heads. The vertical polar pattern is +20  degrees, -40 degrees. This helps reduce ceiling reflections for greater clarity and gain before feedback.

The PVXp 10 speaker system power amplifiers providing the bi-amplification are low-distortion ultra-reliable fan-cooled. The power supply for both amps is a switch mode type for low weight and high efficiency. Both amplifiers feature our DDT compression, which virtually eliminates audible power amplifier clipping. Cooling is provided by a low-noise fan, for reliable operation under any conditions.

FEATURES:

• Two-way bi-amped sound reinforcement enclosure
• Total of 400W peak available power
• 10" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet
• RX 10N compression driver, with 1" diaphragm
• Ultra-reliable fan-cooled power amps with DDT
• Constant directivity horn with 100 by 60 degree coverage
• Asymmetrical horn aims the sound  down 10 degrees,  at the audience, not over their heads
• Input is via a combo  female  XLR and 1/4" TRS phone  jack with balanced input
• Thru output is via an XLR and 1/4" TRS phone  jack
• Contour switch for boosting lows and highs.
• Durable plastic injection-molded trapezoidal enclosure

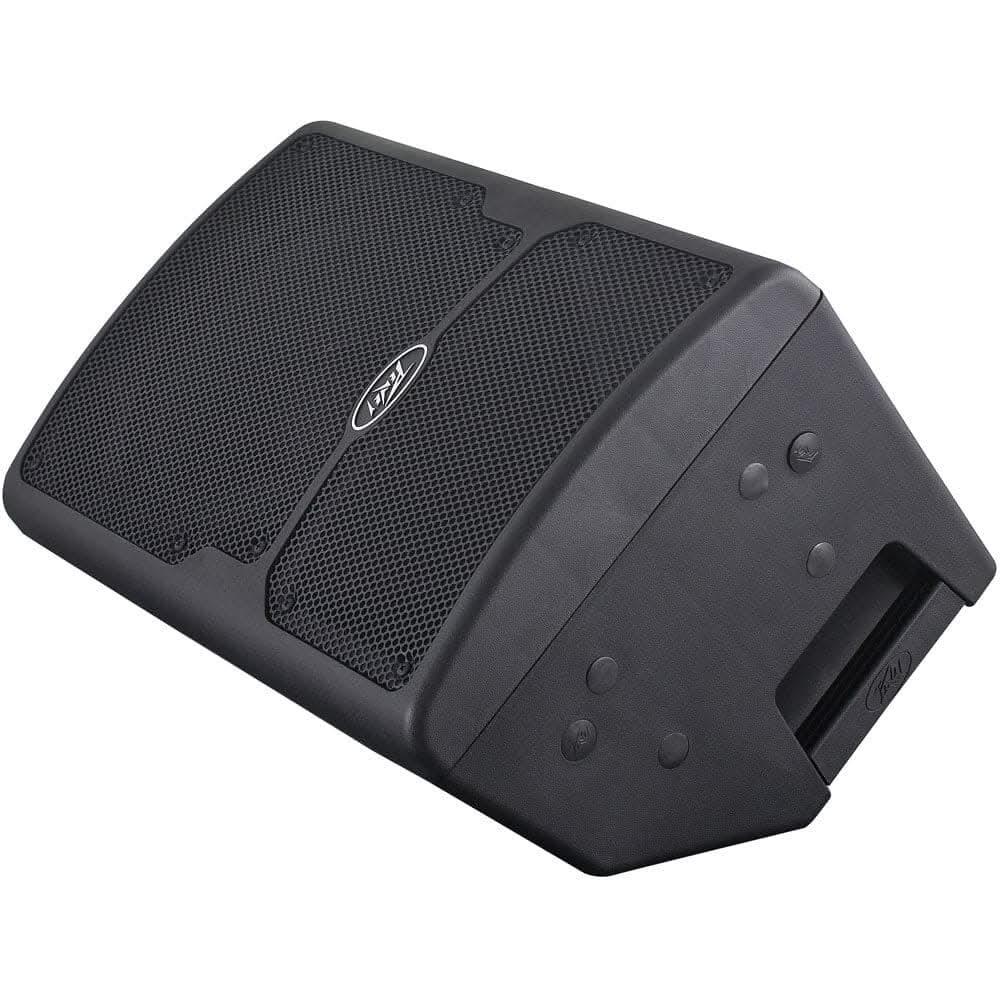

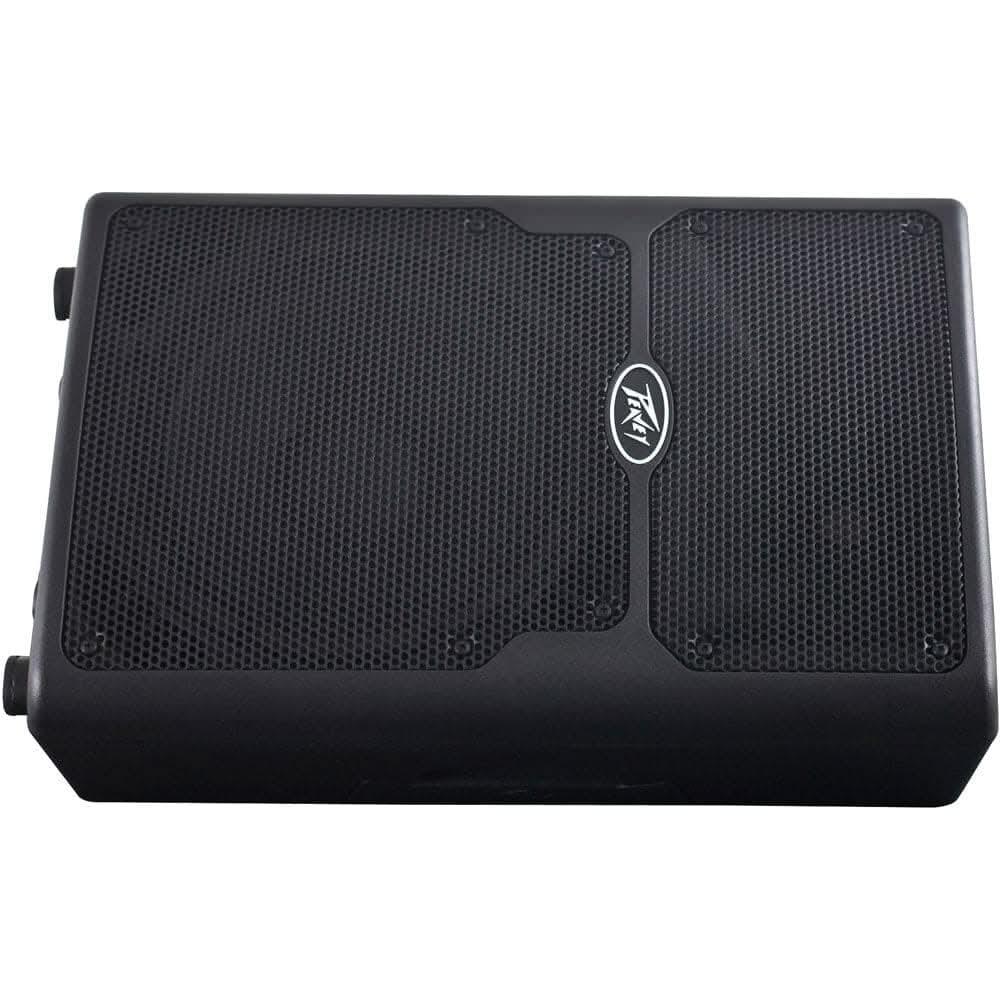

• Extra angled section on right side allows floor monitor use
• Full-coverage heavy-duty perforated steel grilles, with powder coat finish
• Pole mount molded-in for 1 3/8" diameter poles
• Top and bottom flying point inserts

SPECIFICATIONS:

• Internal Power Amplifiers (@120 VAC line):
  Total of 400 watts peak available power
  Woofer - 300 watts peak available power
  Continuous Power: 150 watts @ less than 1% distortion
  Tweeter - 100 watts peak available power
  Continuous Power: 50 watts @ less than 1% distortion.
• Dimensions (H x W x D):
  20" x 12.69" x 11.06" (508mm x 322mm x 281mm)
  28 Lbs. (12.7 kg)
• Frequency Range, 1 Meter On-Axis Swept-Sine In 1/2 Space Environment: 52 Hz to 20 kHz
• Frequency Response, 1 Meter On-Axis Swept-Sine In Anechoic Environment: 65 Hz to 20 kHz (+/- 3 dB)
• Usable Low Frequency Limit (-10 Db Point Anechoic): 54 Hz
• Nominal Sensitivity (1w @1m, Swept Sine Input In Anechoic Environment): 96 dB (average)
• Maximum Sound Pressure Level (1 Meter): 122 dB SPL peak with music
• Radiation Angle Measured At -6 Db Point Of Polar Response: Nominal: 100 degrees horizontal X 60 degrees vertical (Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the angular pattern with respect to straight ahead being +20, -40 degrees)
• Transducer Complement: Heavy-duty 10" woofer with 2-3/8" voice coil & 50 oz. magnet, RX™10N 1" titanium diaphragm dynamic compression driver with Neo magnet
• Box Tuning Frequency: 75 Hz
• Electroacoustic Crossover Frequency: 3,100 Hz
• Crossover Type: Internal Electronic two-way crossover with driver EQ, level matching, bass boost and subsonic filtering.
• Crossover Slopes: 24 dB/octave (4th order) low pass, 24dB/octave (fourth order) high pass, both with staggered poles and driver EQ.

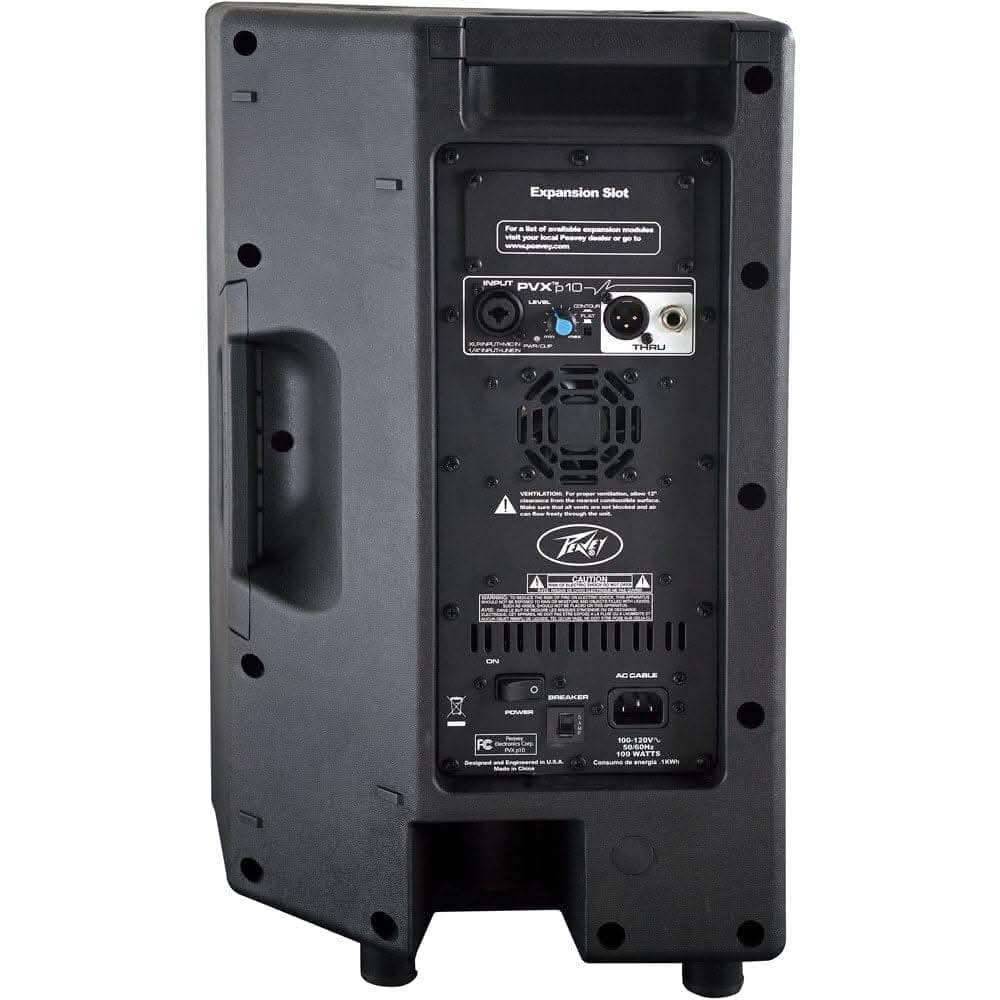

• Input Connections: One combo female XLR /1/4" phone jack providing balanced line-level operation from the 1/4" jack section, and high-output dynamic microphone operation from the XLR section.
• Output Connections: One male XLR and one 1/4" phone jack. he Thru jacks are intended for the use of linking multiple PVXp 10 ‘s in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal.
• Enclosure Materials & Finish: Black ABS plastic with textured surface, black powder-coated perforated grille. Also available in white.

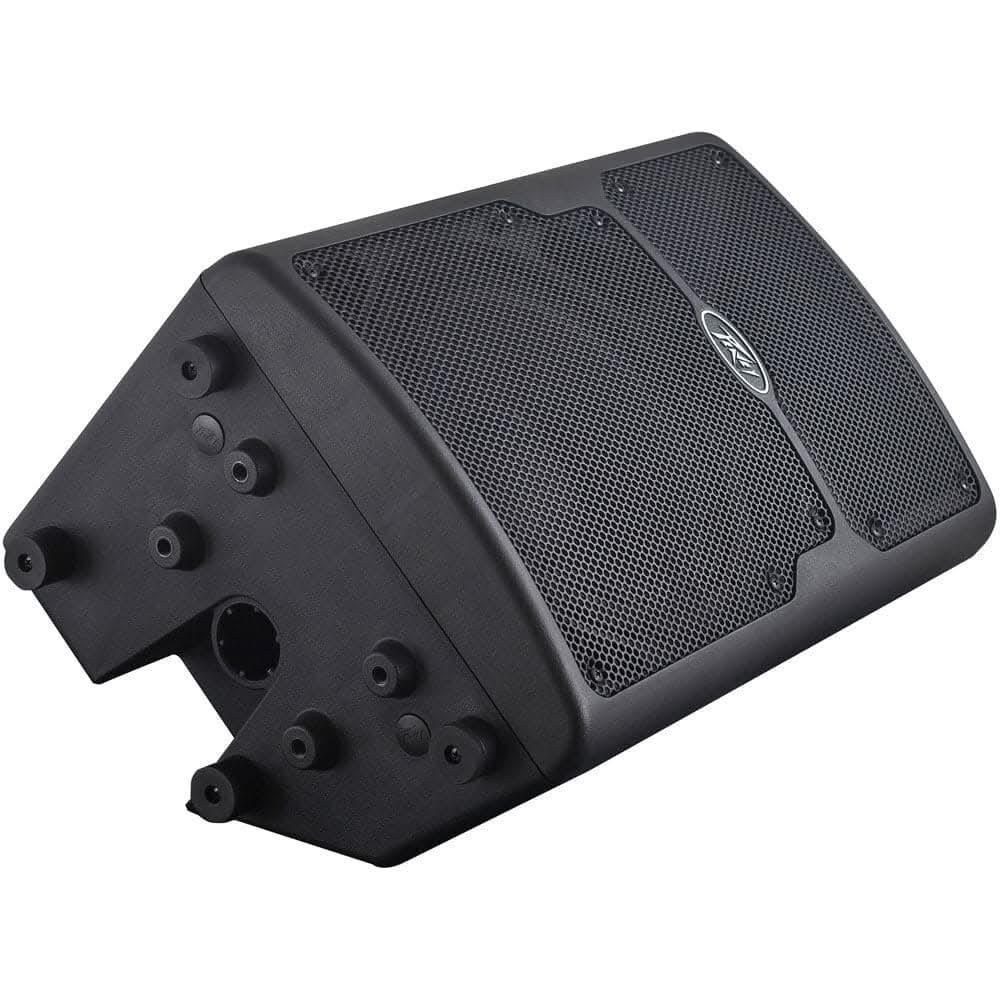

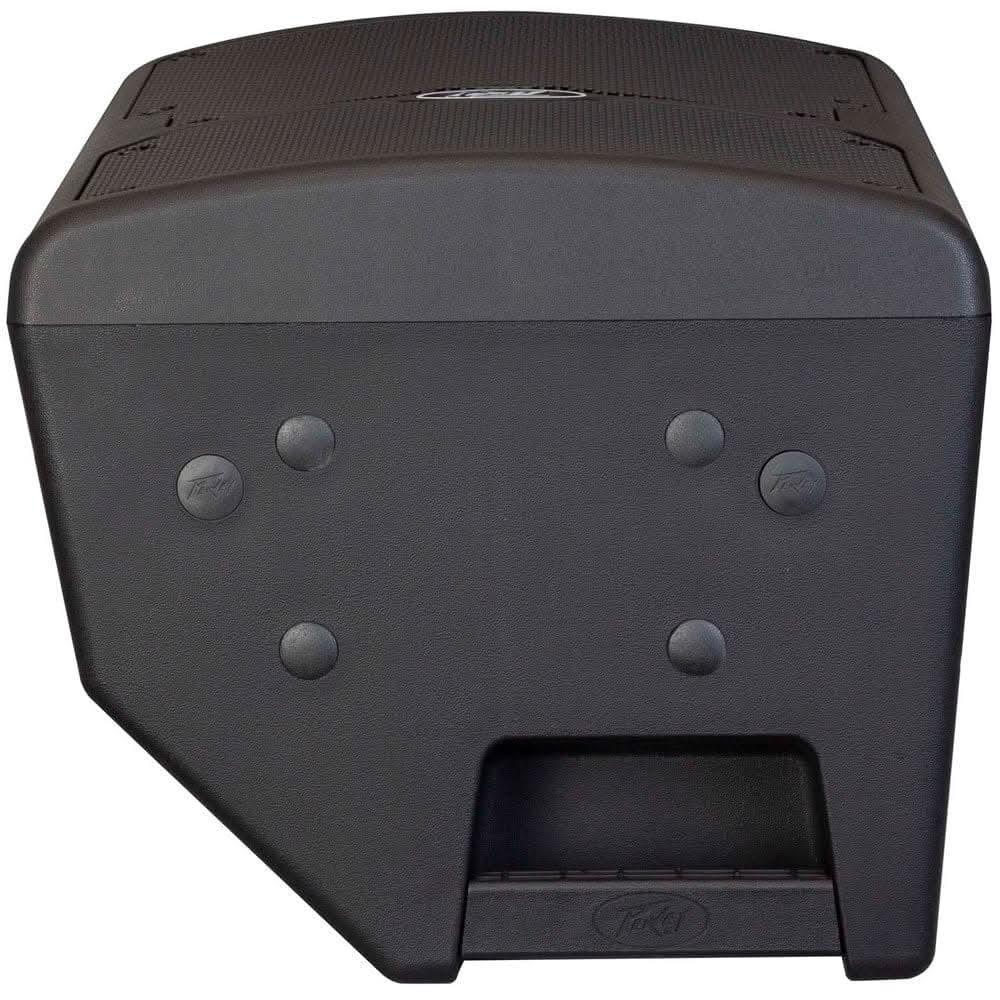

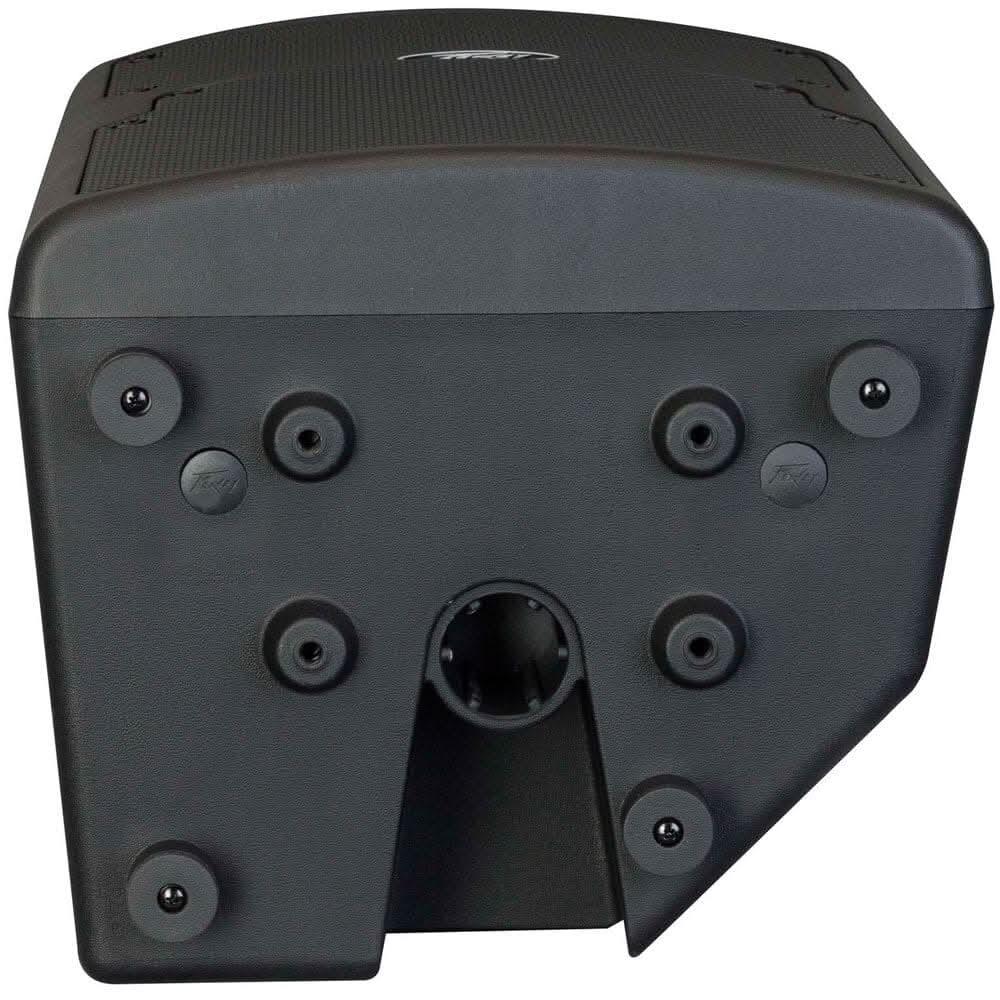

• Mounting Provisions: Unit has two sets of two widely spaced M8 inserts, one pair on the top, and one pair on the bottom.
  Additional mounting points are a set of four M8 inserts on the top and a set of four on the bottom, which use the Peavey VersaMount 70+ mounting bracket. Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom.
