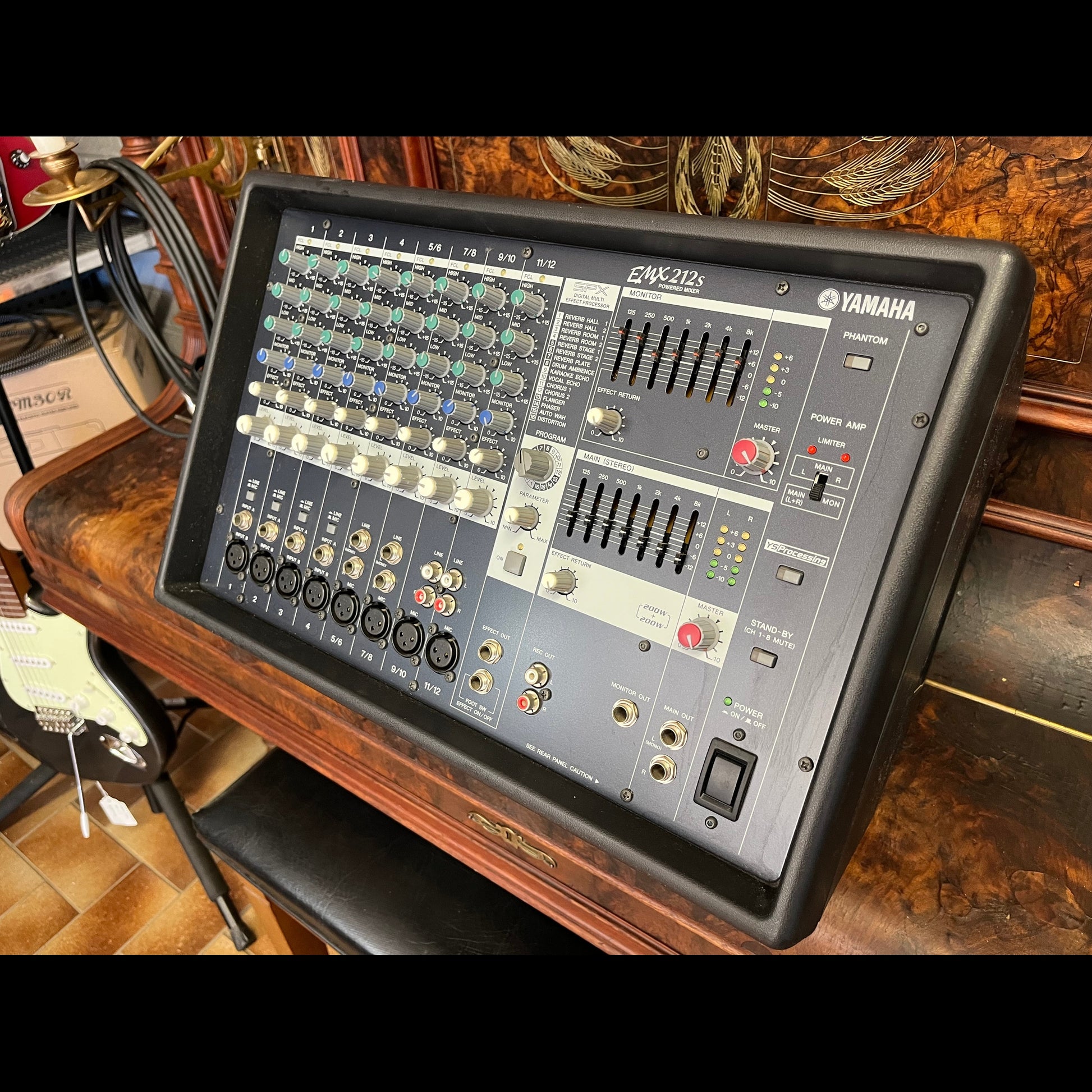

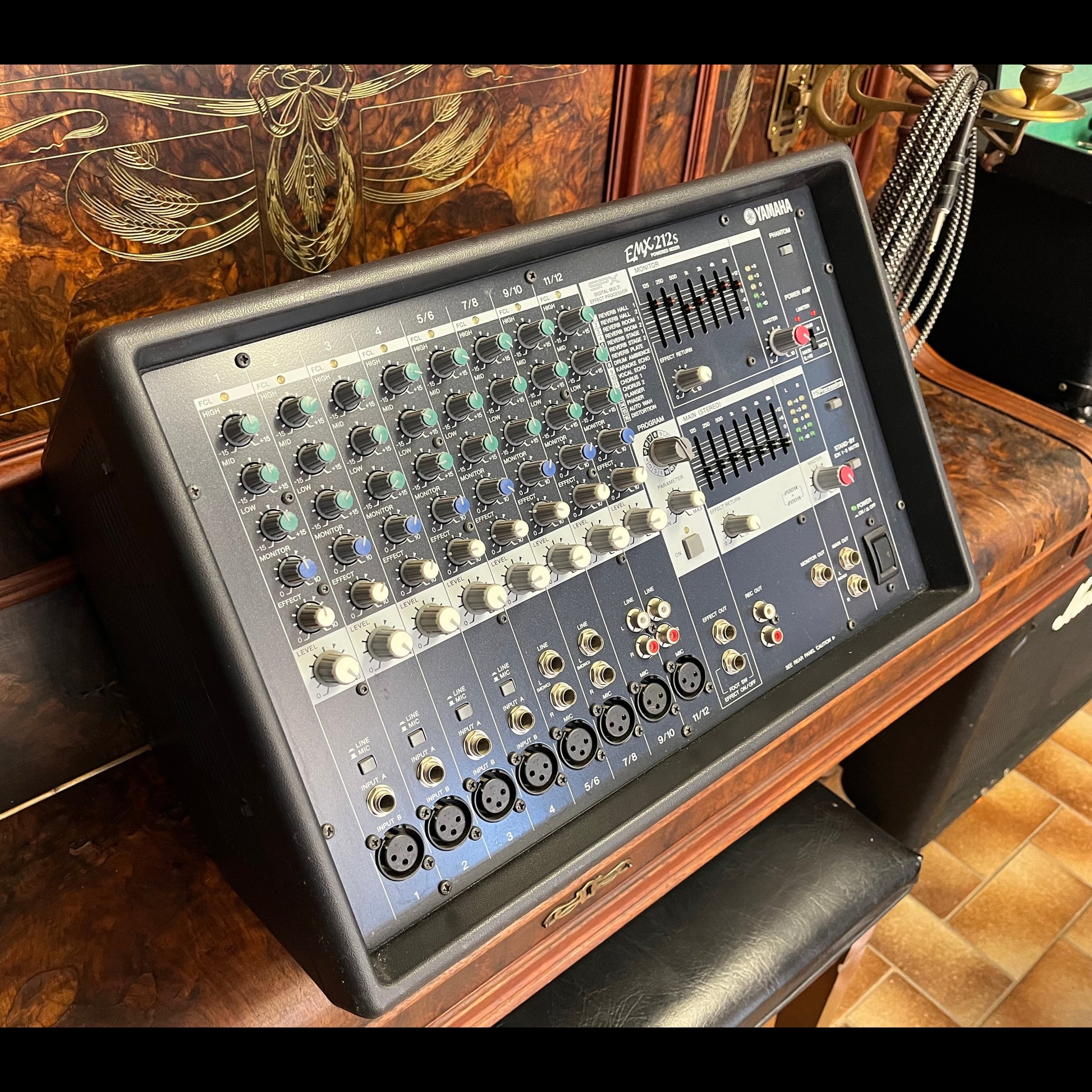

Yamaha EMX212S 12-Input Powered Mixer with FX (2x220W)
Yamaha EMX212S 12-Input Powered Mixer with FX (2x220W)
SKU:Yamaha EMX212S
Out of stock
Couldn't load pickup availability
USED
Integrated Live Sound Solution
The Yamaha EMX212S is a compact powered mixer that combines mixing, effects, EQ, and amplification into one portable, easy-to-use unit. Designed for performers, presenters, and venues that demand reliable live sound, it offers the power and flexibility to suit a wide range of applications.
Versatile Input Configuration

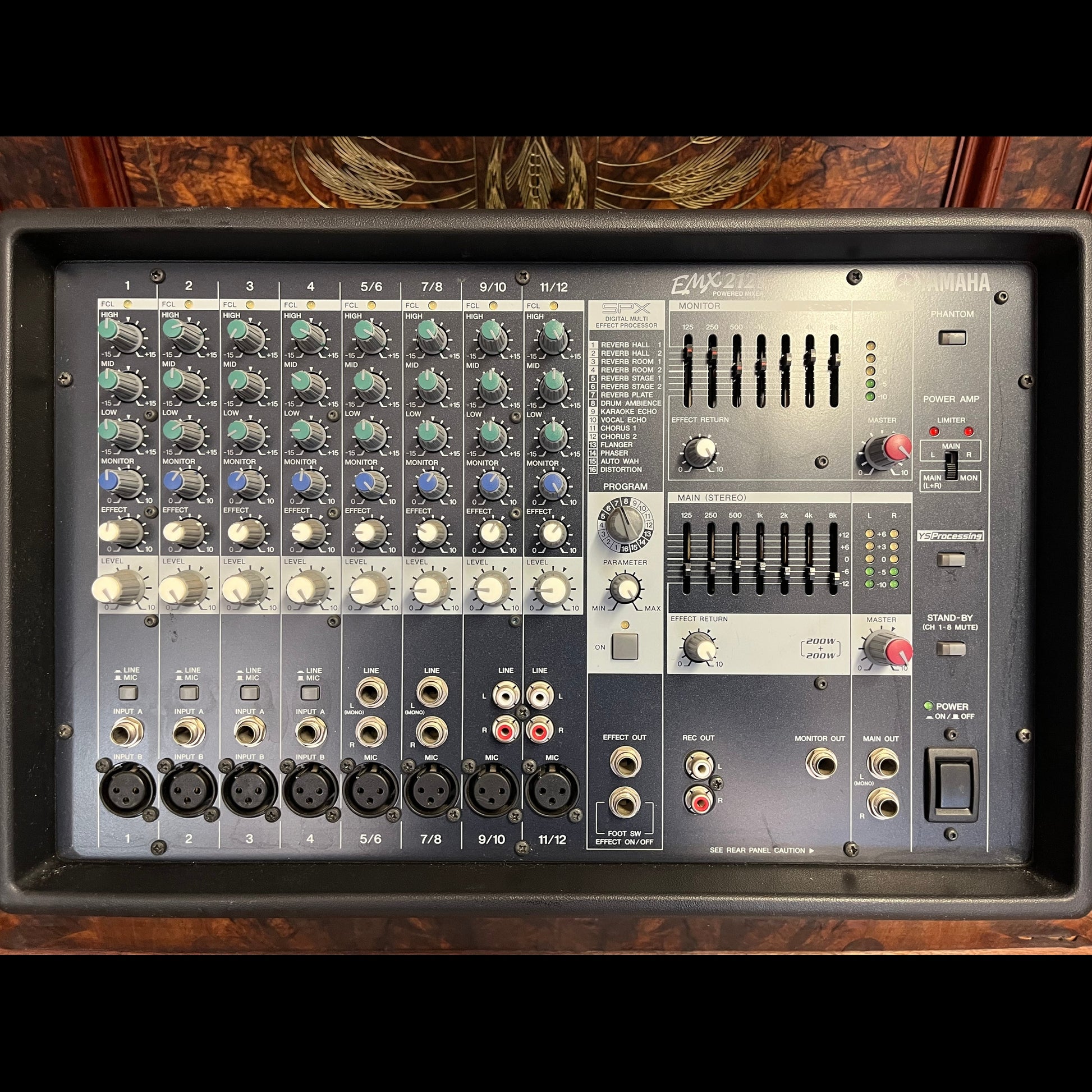

With 12 total inputs—including 4 mono mic/line channels, 2 hybrid mono/stereo channels, and 2 stereo line channels—the EMX212S accommodates everything from vocals and instruments to playback devices. Stereo inputs 9/10 and 11/12 even include phono jacks for direct CD or media player connection.
Built-in Yamaha SPX Effects
Enjoy professional-grade reverb, delay, echo, and modulation with the onboard SPX digital effects processor. Choose from 16 presets, each with adjustable parameters for creative sound enhancement.
Graphic EQ and Feedback Control
Dual 7-band graphic EQs let you tailor your main and monitor outputs for any room. Yamaha’s FCL (Feedback Channel Locating) system makes controlling feedback fast and intuitive.
Efficient Amplification, Practical Design

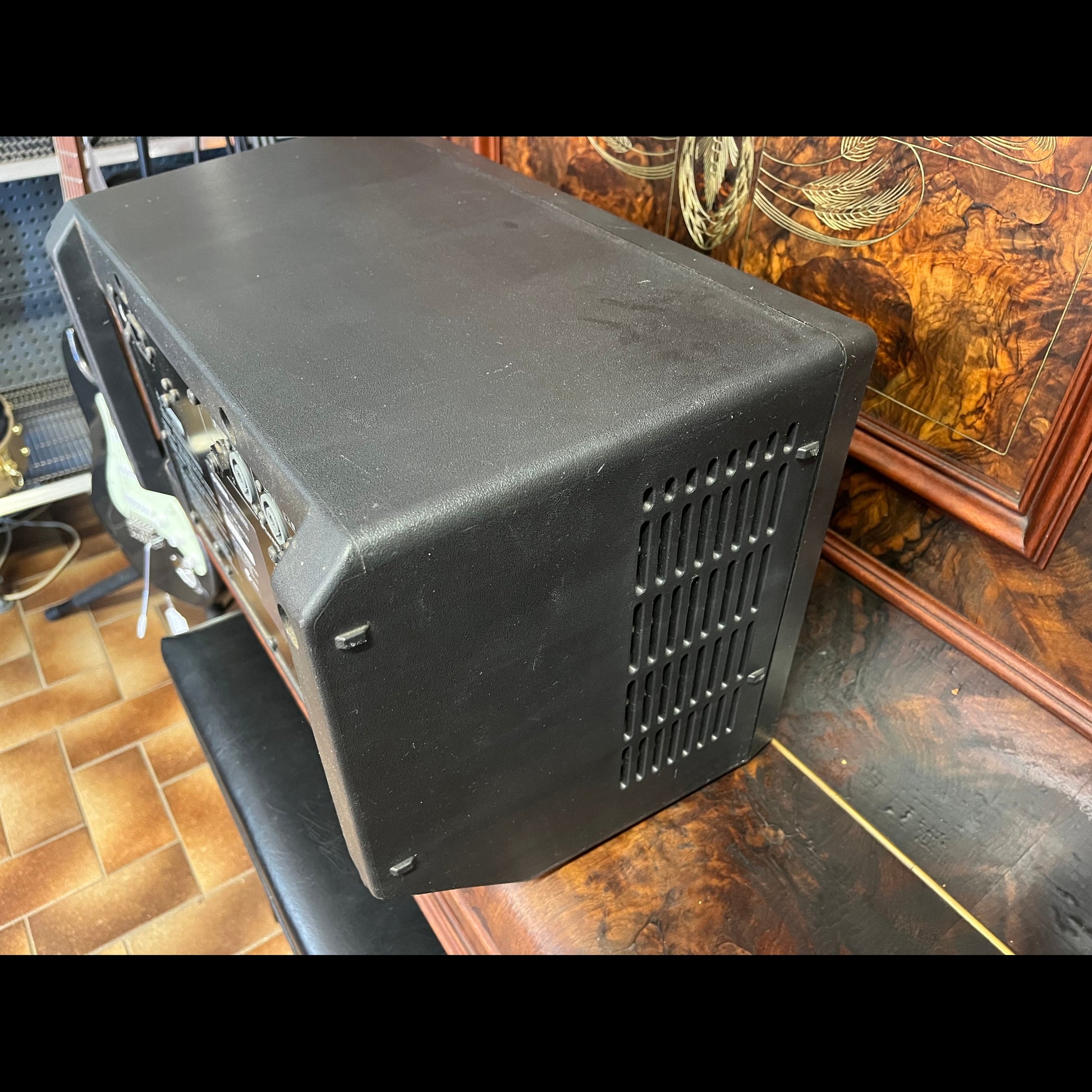

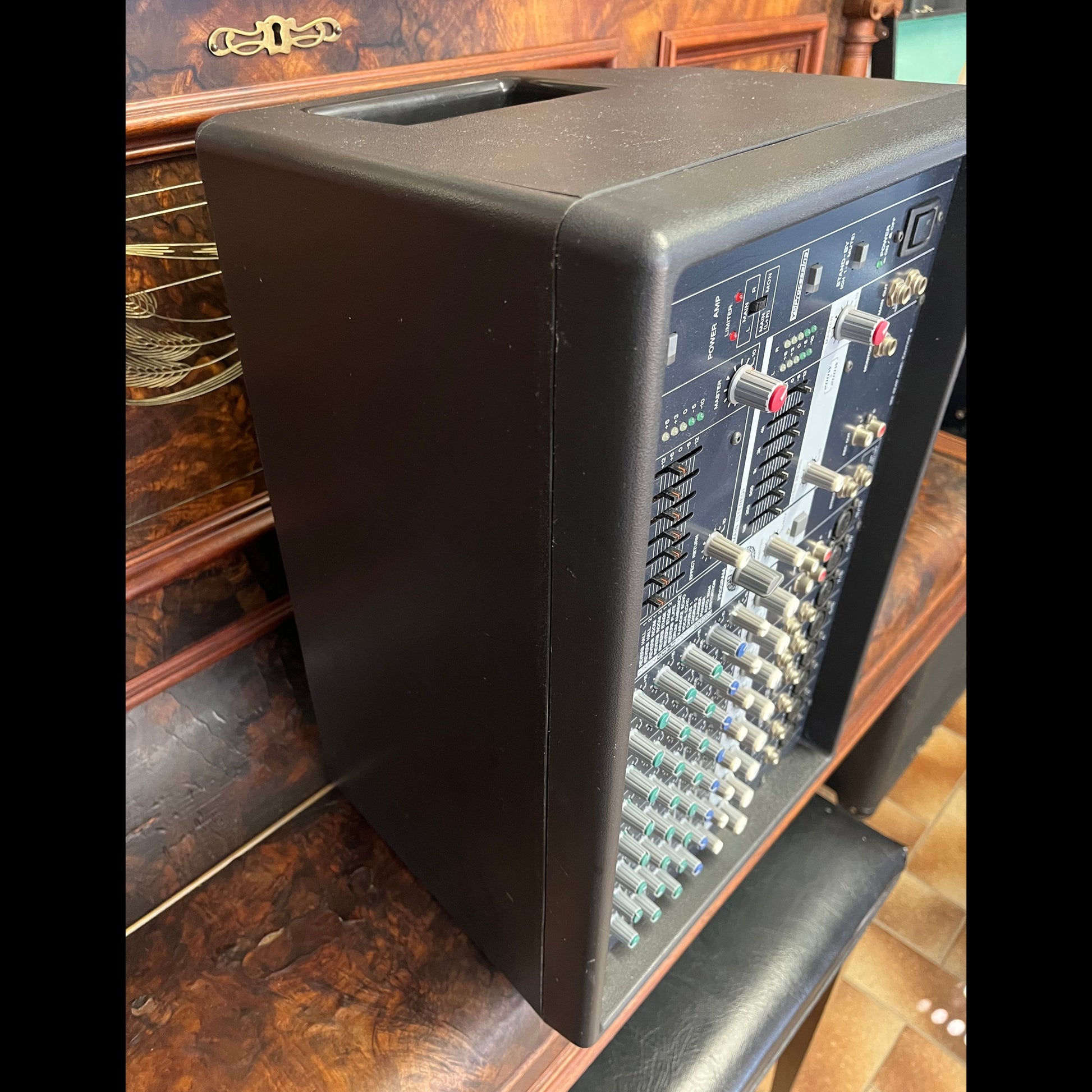

Delivering 220W + 220W of clean Yamaha power, the EMX212S is lightweight yet rugged, with an efficient forced-air cooling system and durable cabinet design for angled or flat positioning. Built to Yamaha’s high safety and reliability standards, it’s a dependable choice for mobile or installed setups.
Optimised for Yamaha Speakers
Use the Yamaha Speaker Processing function to maximise clarity and output when paired with Yamaha Concert Club, BR, or AX series speakers.
Key Features
-
12-input mixer with 4 mono and 4 stereo channels
-
220W + 220W high-efficiency power amplifiers
-
Built-in 16-program SPX digital effects processor
-
Dual 7-band graphic EQs for main and monitor tuning
-
Feedback Channel Locating (FCL) indicators
-
Phono inputs for media players
-
Lightweight, rugged cabinet with forced-air cooling
-
Yamaha speaker processing for matched system performance
-
All-in-one design for fast setup and operation
Specifications
Power Amplifier Output
-
Maximum Output Power (@ 0.5% THD, 1 kHz):
• 220 W + 220 W @ 4Ω
• 130 W + 130 W @ 8Ω
Frequency Response
-
20 Hz–20 kHz, ±1 dB (referenced to nominal output @ 1 kHz)
Total Harmonic Distortion (THD+N)
-
Less than 0.5% (+14 dB @ 20 Hz, 1 kHz, 20 kHz; GAIN controls nominal)
Noise Performance
-
Equivalent Input Noise: –115 dBu (CH1–4 MIC, Rs = 150Ω)
-
Crosstalk: –65 dB @ 1 kHz
Input Connectors
-
CH 1–4: XLR and ¼" Phone
-
CH 5/6, 7/8: XLR and ¼" Phone
-
CH 9/10, 11/12: XLR and RCA Pin
Channel EQ
-
3-Band: High, Mid, Low
Phantom Power
-
+15V (on mic inputs)
Graphic EQ
-
7-band (125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz)
-
Applies to Main (Stereo) and Monitor outputs
Digital Effects
-
Built-in SPX multi-effects processor
-
24-bit A/D and D/A, 32-bit internal processing
-
16 effects programs with editable parameters
Power Amp Mode Selector
-
Configurations: Main L/R, Main (L+R)/Monitor
Footswitch
-
Compatible with Yamaha FC5 (for FX on/off)
Dimensions & Weight
-
Size: 442 × 274 × 286 mm (17-3/8" × 10-3/4" × 11-1/4")
-
Weight: 10 kg (22 lbs)
Power Requirements
-
120V AC, 60 Hz
-
Power Consumption: 270 W
Input Characteristics
Channel | Connector | Function | Impedance | Sensitivity | Max Input Level |
---|---|---|---|---|---|
CH 1–4 | XLR | MIC | 2 kΩ | –60 dBu | –15 dBu |
LINE | –30 dBu | +15 dBu | |||
¼" Phone (Bal) | MIC | 6 kΩ | –50 dBu | –5 dBu | |
LINE | –20 dBu | +25 dBu | |||
CH 5/6, 7/8 | XLR | MIC | 2 kΩ | –60 dBu | –15 dBu |
¼" Phone (Unbal) | LINE | 10 kΩ | –20 dBu | +25 dBu | |
CH 9/10, 11/12 | XLR | MIC | 2 kΩ | –60 dBu | –15 dBu |
RCA Pin | LINE | 10 kΩ | –20 dBu | +25 dBu |
Note:
– All XLR inputs are balanced (1=GND, 2=HOT, 3=COLD)
– ¼" Phone jacks: CH 1–4 are balanced, CH 5/6–12 are unbalanced
– 0 dBu = 0.775 Vrms

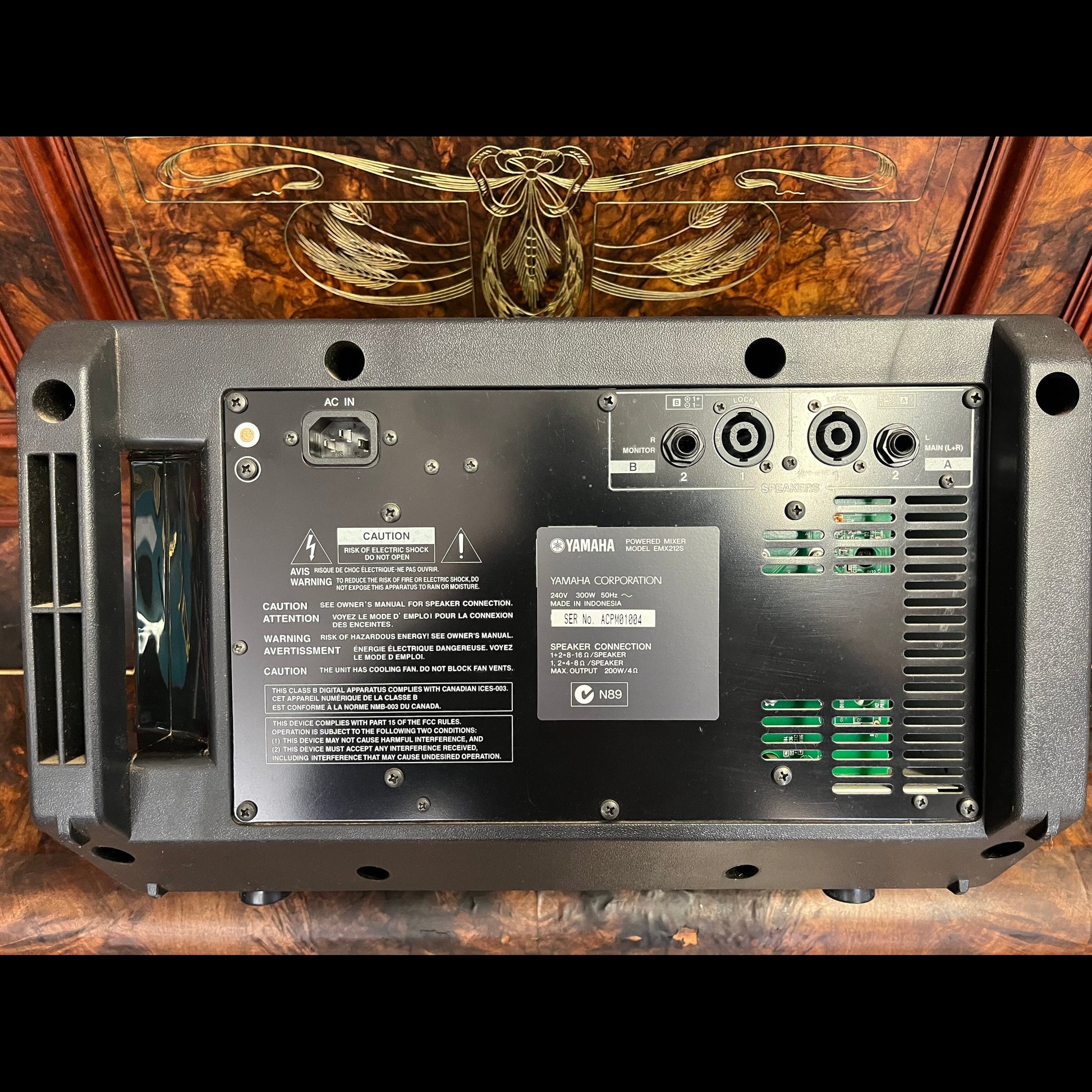

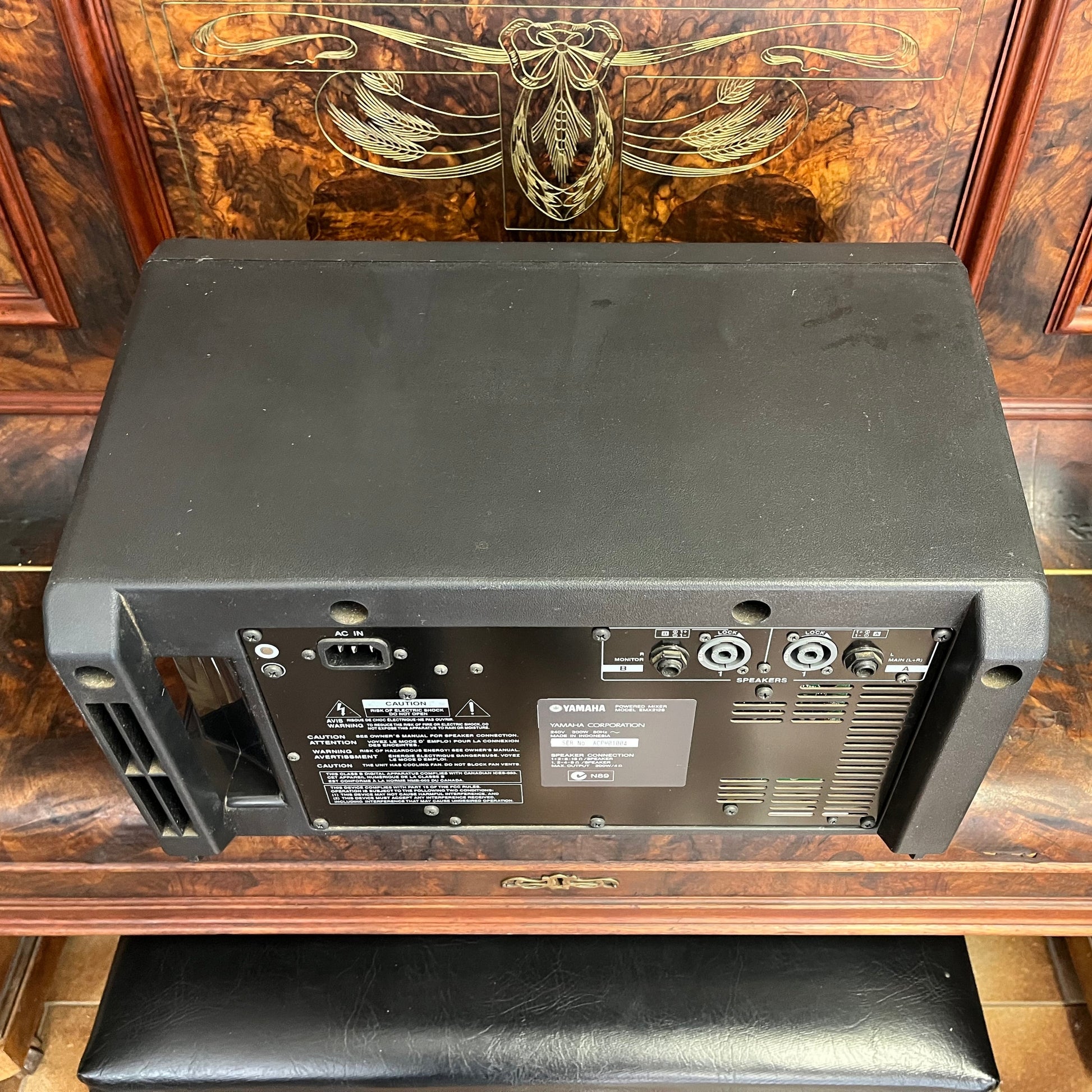

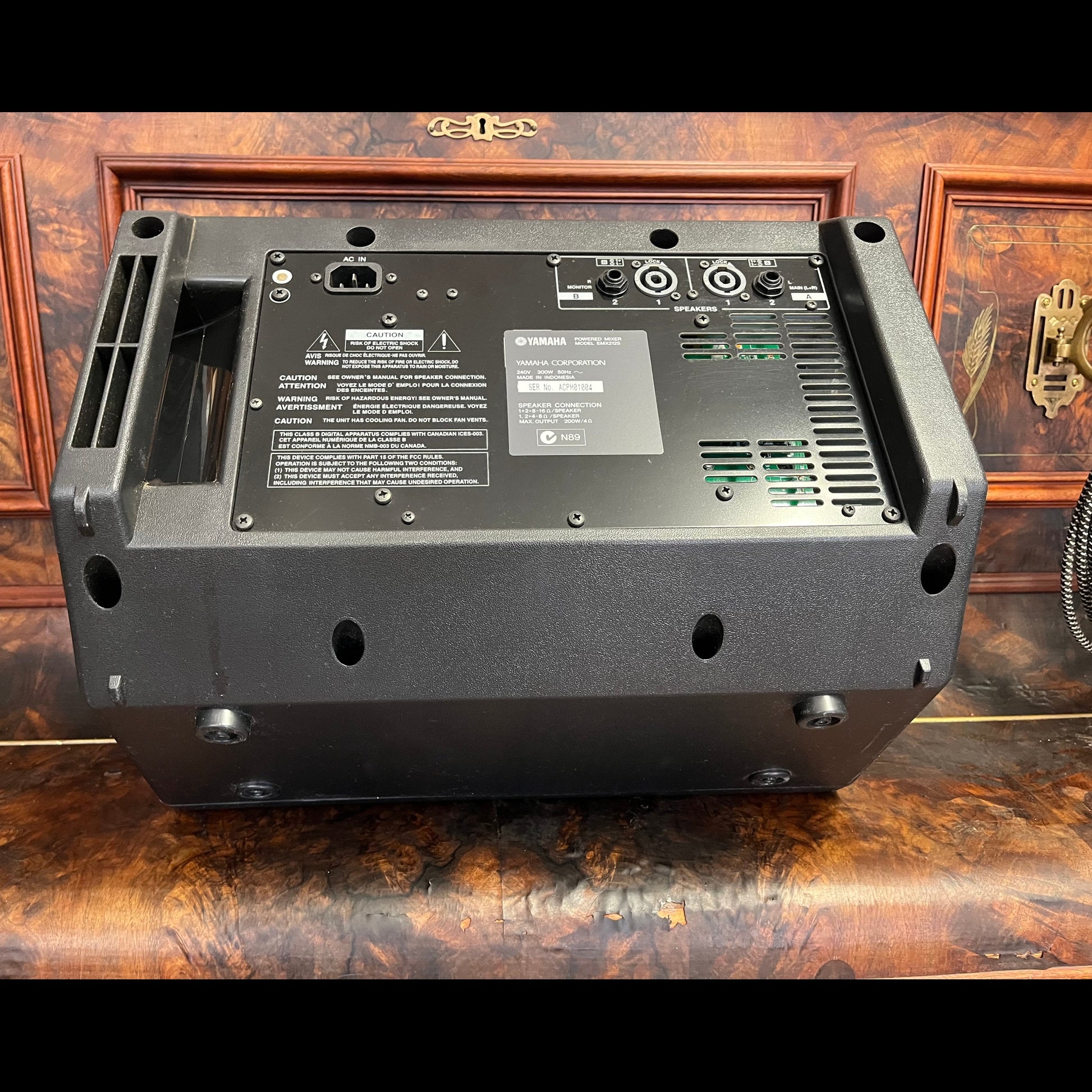

Output Characteristics
Output | Connector | Impedance | Nominal Level | Max Level |
---|---|---|---|---|
SPEAKER OUT (EMX212S) | Speakon & ¼" Phone | 0.1 Ω | 50 W | 200 W |
MAIN OUT (L/R) | ¼" Phone (Unbal) | 600 Ω | +4 dBu | +20 dBu |
MONITOR OUT | ¼" Phone (Unbal) | 600 Ω | +4 dBu | +20 dBu |
EFFECT OUT | ¼" Phone (Unbal) | 600 Ω | +4 dBu | +20 dBu |
REC OUT (L/R) | RCA Pin | 600 Ω | –10 dBV | +10 dBV |
Note:
– 0 dBu = 0.775 Vrms
– 0 dBV = 1 Vrms
